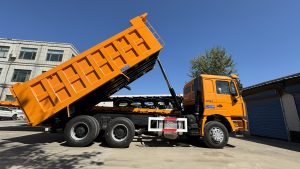

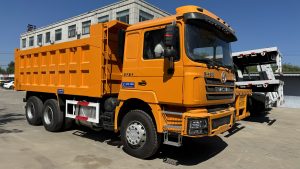

To meet the growing demands of efficient and reliable transportation, two SHACMAN F3000 6X4 Dump Trucks are set to depart for Zambia! These trucks are equipped with a powerful 380 horsepower engine, making them the perfect choice for both long-distance and heavy-duty cargo transportation.
Details of The Original Shacman F3000 380Hp Dump TRUCK

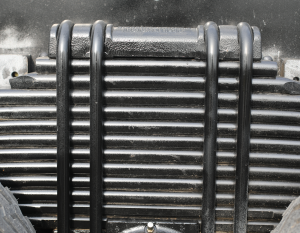

1.Enhanced water tank and oil pan protection grille: effectively protects the engine water tank and oil pan, reducing after-sales costs.

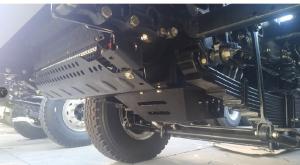

2.The rear suspension has four main pieces and four riders, and the thickness of leaf springs is thickened to improve the adaptability of the chassis to harsh working conditions.

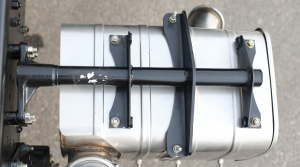

3.Reinforced cast muffler and air filter bracket to enhance the service life of parts under severe working conditions and reduce after-sales costs.

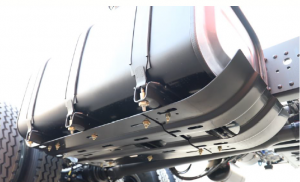

4.Fuel tank changed to a triple strap design and added bottom tank protection.
| MODEL | SX3315DU406 | |
| Driving type | 8×4 | |
| Curb weight | 17800kg | |
| Max.Weight | 80000kg（technology） | |
| Overall Dimension | 11000×2490×3480 | |
| Wheelbase | 1800+3975+1400 | |
| Max. Speed | 70 km/h | |
| Max. Grade ability | 30 | |
| Engine | WEICHAI brand | WP12.400E201 |
| Transmission | 10JSD180 with QH50 PTO ，10 forward，2 reverse |
| battery | 165Ah maintenance-free battery | |
| Suspension | multiple leaf springs front and rear/Four main spring + four bolts | |
| Fuel tank | 380L fuel tank | |
| Wheels and tires | 12.00R20，Mixed Patterns，12+1 | |
| Cabin | F3000 Flat roof cab/single sleeper/hydraulic driver’s seat/fixed secondary seat/four-point hydraulic suspension/manual flip-up/air-conditioning/Thickness 5mm steel plate bumper | |
| Other | 1. Protective grilles for front and rear lamps
2. Cooling Tank Protection Grid 3. Engine oil sump protection grill 4. Add a long-lasting coarse filter to the fuel system 2 Warning Lamp ( Two Pcs ,at the top of Cab) |
| Front axle | HANDE brand 2X9.5T | |
| Clutch | ￠430 diaphragm clutch￠430 | |
| Steering | ZF technology | |
| Frame | 850×320（8+7+8）,Original Shacman Three Story frame | |
| air filter | Suitable for construction sites and other dusty working conditions, better filtration effect） |
