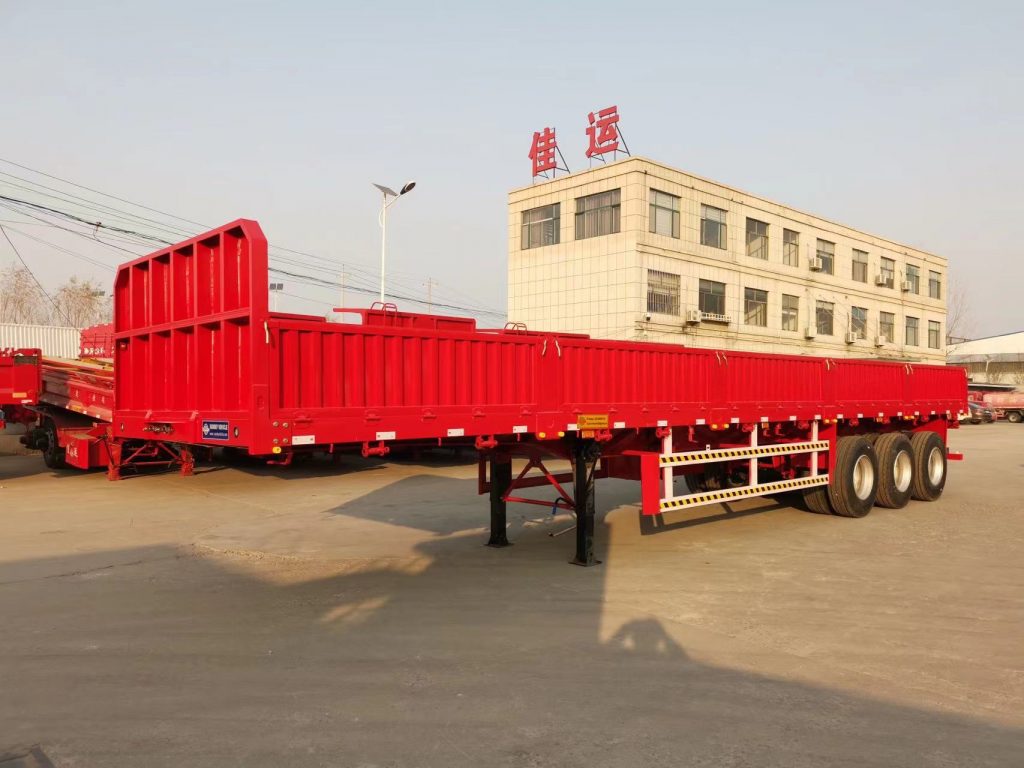

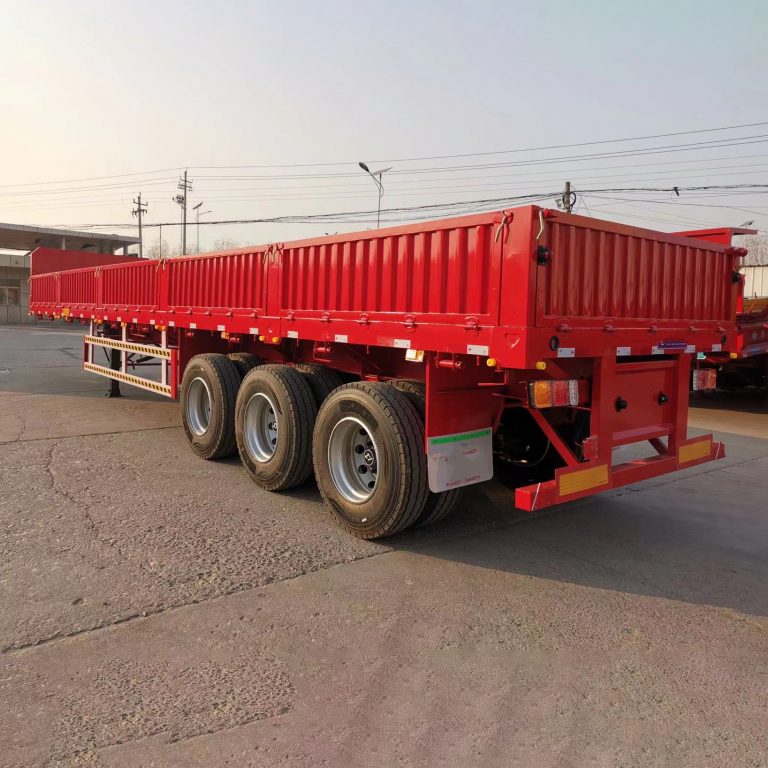

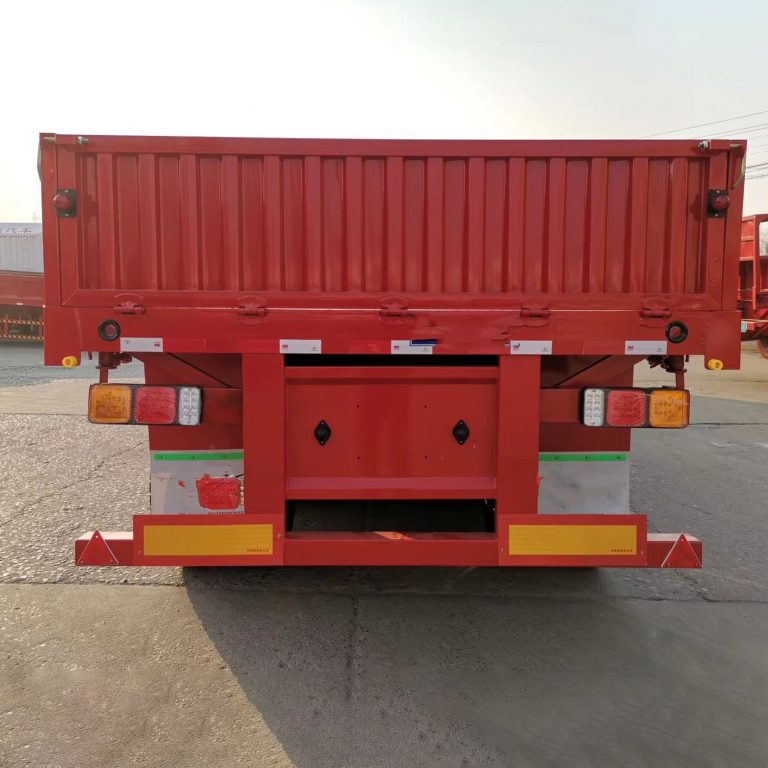

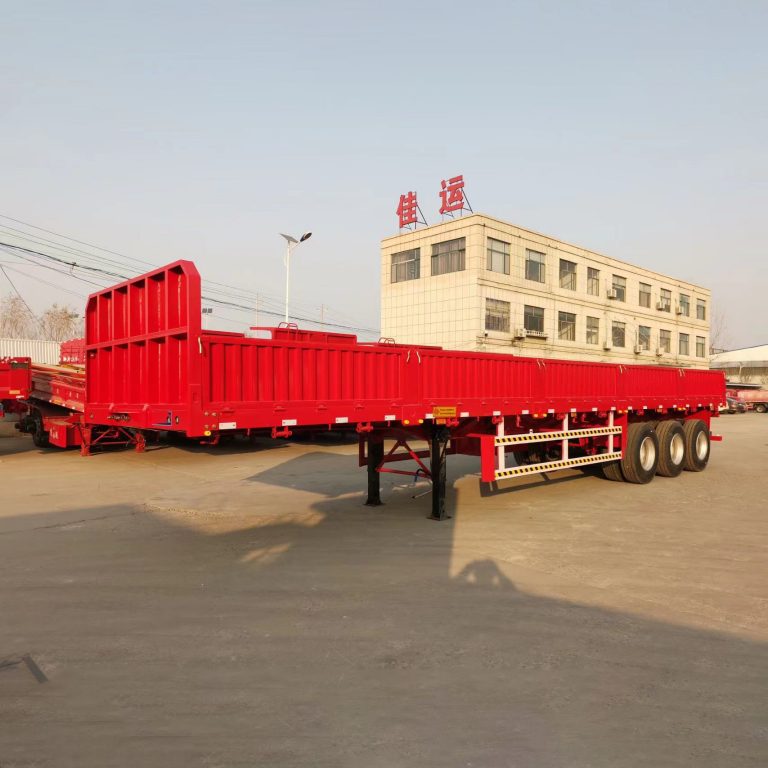

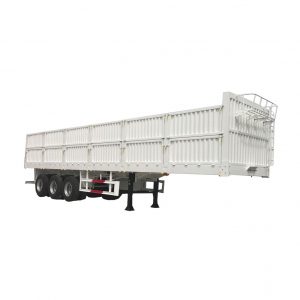

LUCKIN VEHICLE supply 3 Axles Drop Side Trailer with 1000mm Height Side Walls, who has a pallet structure and wide range of uses. It is mainly suitable for medium and long-distance transportation of medium, heavy and bulk goods, such as grain, bagged cement, ect.
Leading Time: 30days
Brand: LUCKIN VEHICLE
Payment: T/T, L/C
Product Parameter
Tare Weight: about 7.2 T;
Payload: 60 T;
Dimension (L*W*H): 12500mm*2500mm*1500mm;
Main beam: 500mm height, top plate 14mm thickness*140mm width, bottom plate 16mm thickness*140mm width, middle plate 8mm thickness;
Twist lock: 4+4/8/12 pcs, which could support 1×20” container, 2×20” containers or 1×40” container one time;
Platform: 3mm thickness checkered plate
King pin: JOST 2.0/3.5 inches (bolted or welded);
Axles: BPW/FUWA/ZY brand, 13T, 3pcs;
Suspensions: Mechanical suspension (America type or German type);
Leaf springs: 10 layers 90mm*16mm, 6 units;
Tires: 11R22.5/12R22.5/11.00R20/12.00R20/315/80R22.5/385/65R22.5, 12pcs+1pc spare tire;
Rims: 9.0-22.5, 13pcs;
Landing gear: JOST 28T, Linkage Outrigger;
Spare tire carrier: 1pc;
Tool box: 1 unit;
ABS: Optional
Brake system: WABCO 6 relays valve; T30/30+T30 air chamber, 40L air tanks;
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable.
Accessories: 1 unit tool box, 1 pc spare tire carrier, all set of standard tools.
Others as the factory standard or according to the customer’s requirements.
Product Introduction
LUCKIN VEHICLE supply 3 Axles Drop Side Trailer with 1000mm Height Side Walls, who has a pallet structure and wide range of uses. It is mainly suitable for medium and long-distance transportation of medium, heavy and bulk goods, such as grain, bagged cement, ect.
With 12 container locks on the platform, LUCKIN Drop Side Semi Trailer can also load and transport 1X40HQ, 2X20HC or only 1 units 20HC one time when you take off all the side walls and pillars around the trailer.

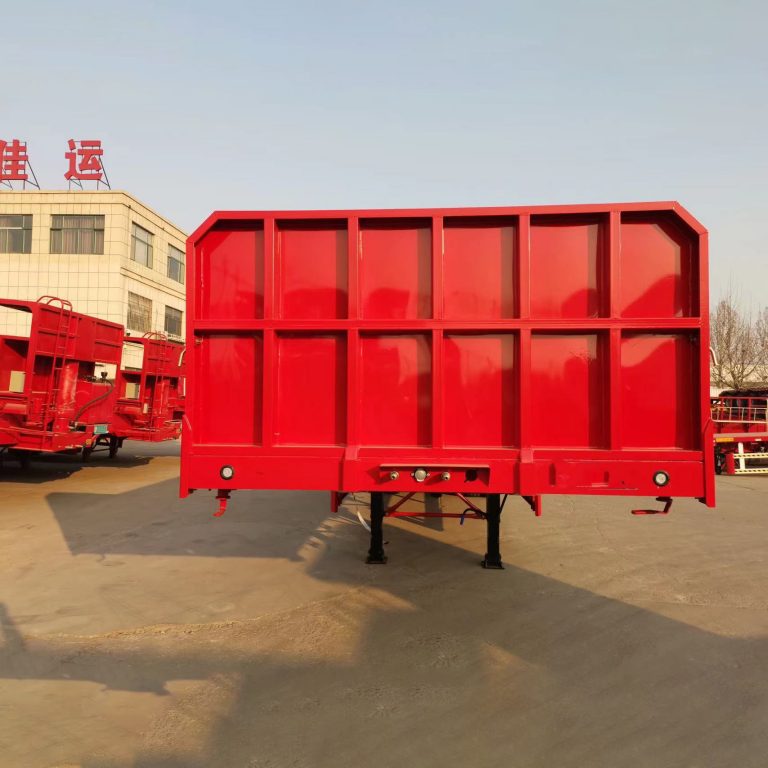

The trailer’s side panels can be opened for easier unloading and the shape of the side panels can be customized. Drop Side Semi Trailer has become the first choice for medium and long-distance freight vehicles based on its strong applicability, and it becomes the first choice for medium and long-distance freight vehicle for a lot of transport companies in the logistics industry.
LUCKIN VEHICLE promises that “Good is not enough when better is available.”We sincerely look forward to your visiting and calling.
