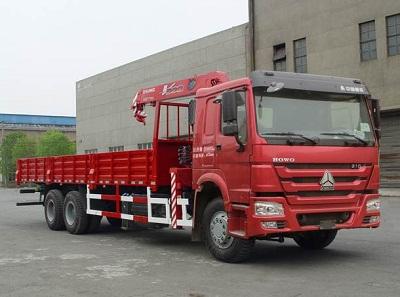

Sinotruk Howo 6×4 Cargo Truck with Crane is telescoping boom truck, also known as boom truck, is used to lift materials through a hydraulic winch by raising and lowering the boom. Operation is simple enough: rotate, extend, raise and lower when necessary.
Cabin Driving type 4×2 LHD/RHD
Vehicle Main Dimensions Overall dimensions (L x W x H) mm 9200×2580×3700
Carriage Size (L x W x H) mm 5950×2300×600
Wheel base (mm) 5200
Wheel track (front/rear) (mm) 1886/1845
Weight in KGS
Tare Weight
6900
payload
10000
Front axles loading capacity
1×3600
Rear axles loading capacity
1×10500
Max. driving speed(km/h)
95
Engine
Brand
Sinotruk
Model
YUCHAI
Type
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP)
160
Emission standard
Euro II
Gearbox
DC6J65TC 6 Forwards gear & 1 reverse r
Clutch
Reinforced diaphragm clutch, diameter 430 mm
Tire
9.00R20 Radial tyre 7pcs including one spare tire

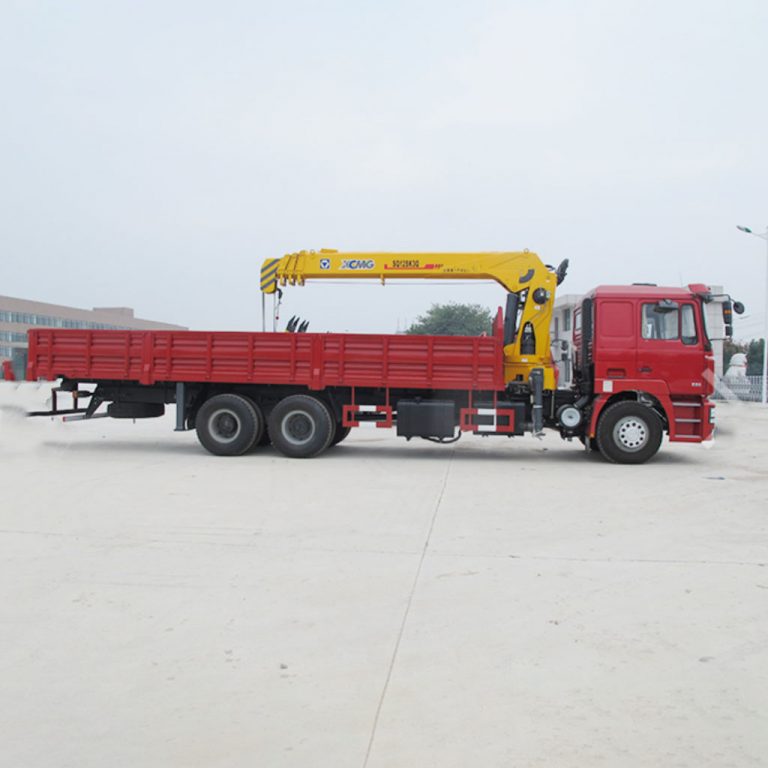

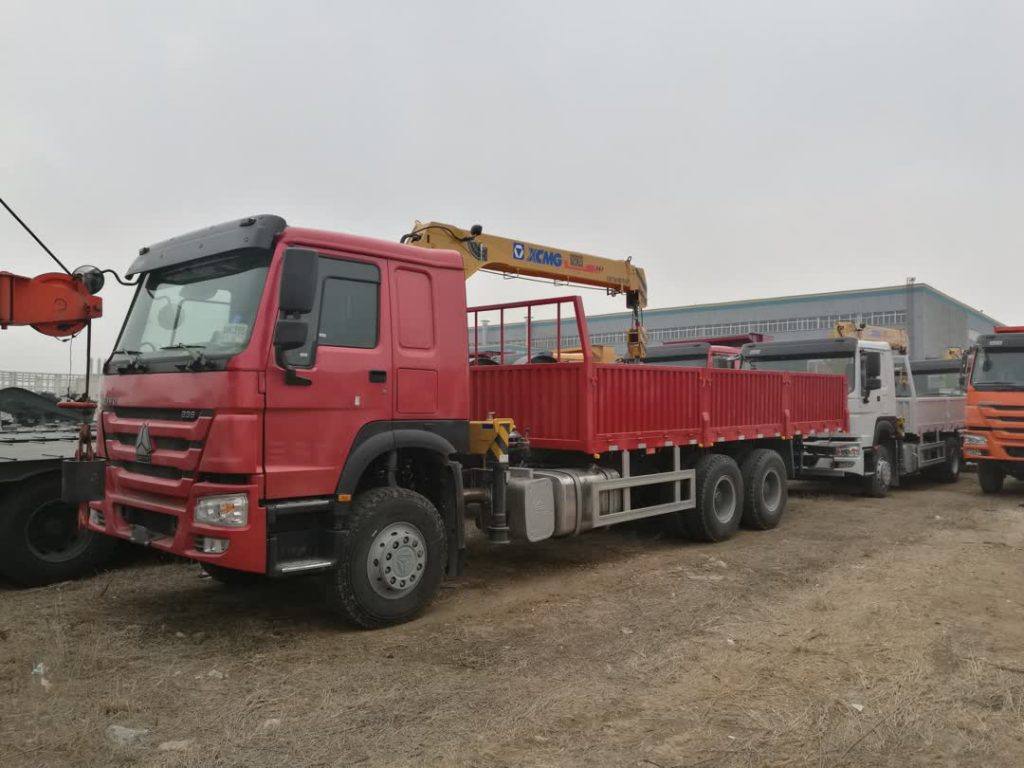

HOWO 6×4 truck with XCMG 14T Crane is telescoping boom truck, also known as boom truck, is used to lift materials through a hydraulic winch by raising and lowering the boom. Operation is simple enough: rotate, extend, raise and lower when necessary. Telescoping boom trucks strictly control the height of lifting and lowering of objects to facilitate the operation of workers. They are often used in utilities such as oil and natural gas. Boom truck cranes are controlled either via a lower control station with manual or electric/hydraulic controls, or via remote control. When operating from the fixed controls, the operator is safely off the ground either standing at the turret or within an enclosed cabin. This provides maximized visibility of the lifting activity.
LUCKIN VEHICLE promises that “Good is not enough when better is available.”We sincerely look forward to your visiting and calling.
