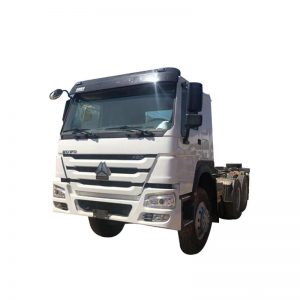

Sinotruk HOWO 7 6X4 Tractor Truck

Products

Sinotruk HOWO 7 6X4 Tractor Truck

share to:

Sinotruk Howo 6X4 tractor truck HW76 has flat roof cabin with one bed, which is comfortable for drivers. Howo 6X4 tractor truck Heavy duty capacity can help you pull more goods.

Lead Time:20 days

Shipping Port:Any Port Of China

Payment:T/T;L/C

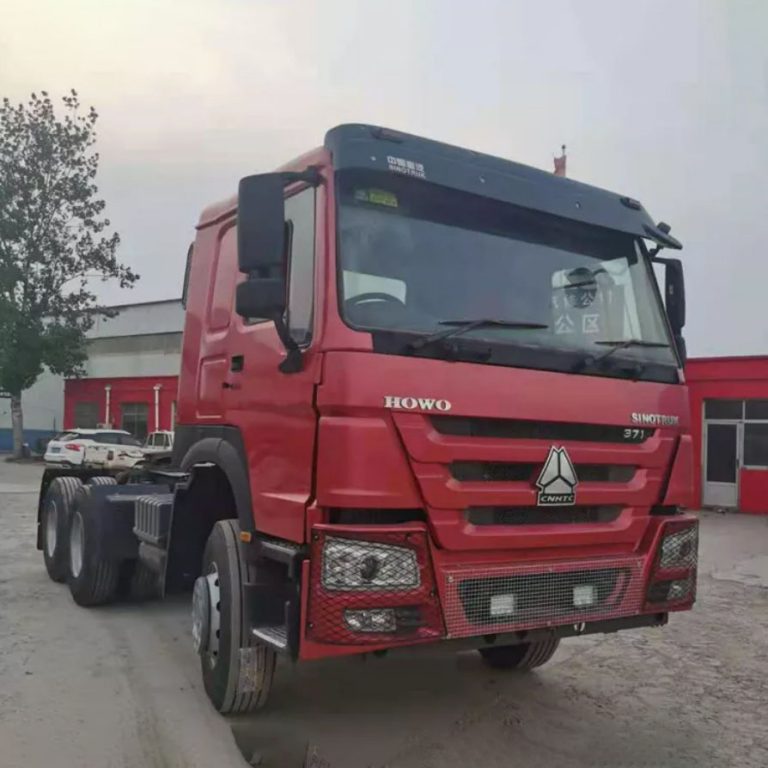

Sinotruk HOWO 7 6X4 Tractor Truck

Sinotruk HOWO 7 6X4 Tractor Truck插图

Model ZZ4257V3241V

EngineD12.42-20(420Hp at 2000r/min, Euro II)1820Nm at 1100-1500r/min

ClutchSingle-plate dry diaphragm spring clutch, diameter 430 mm, hydraulically operating with air assistance

TransmissionHW19710, 10 forward and 2 reverse, manual

Propeller ShaftDouble universal joint propeller shaft with gear-shaped coupling flange

Front AxleHF9 (9000Kg)

Rear AxlesHC16 (2x16000Kg) Ratio: 5.73

ChassisEnhanced version of multi leaf spring (Front 9 pieces, Rear 12 pieces)

Fuel tankWith one 400 L fuel tank with locking fuel cap

SteeringZF power steering, model ZF8118, hydraulic steering with power assistance

Ratio: 22.2-26.2

BrakesWith high bumper

Auxiliary brake: engine exhaust brake

Without Climate package

With ABS (Optional)

Wheel & TiresRims width: 8.5

Tires : 12.00R20

Fifth wheel90# (3.5’’) SINOTRUK

CabHW79 cab, two sleeper, all steel forward control, 55°hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, exterior sun visor, stereo radio, safety belts, air horn, air conditioner, and single berths with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner, adjustable roof flap.

With air conditioner (optional)

ElectricsOperating voltage:24V, negative grounded;  Starter: 24V, 5.4KW

Alternator: 3-phrase, 28V, 2240W;  Batteries: 2×12, 165Ah

Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp

Dimensions in mm

Wheel base:3200+1400

Front wheel track:2022

Rear wheel track:1830

Front overhang:1500

Rear overhang:700

Approach angle(o):16

Departure angle(o):70

Overall Dimension:6800×2496×3560 (mm)

Weight in kg

Net weight:9000

Gross Cargo Weight:65000

Front axle loading capacity:9000

Rear axle loading capacity:16000X2

Performance

Maximum driving speed(km/h):102

Maximum grade ablility (%):35

Minimum ground clearance(mm):290

Minimum turning circle(m):12

Product Introduction

Sinotruk Howo 6X4 tractor truck HW76 has flat roof cabin with one bed, which is comfortable for drivers. Howo 6X4 tractor truck Heavy duty capacity can help you pull more goods. Sinotruk Howo 6X4 tractor truck is suitable for towing all kinds of semi trailer which is used in logistics business, construction site and Mining area. The howo tractor trucks are produced according to rigid manufacturing standard in factory. Sinotruk Howo tractor truck is useful for transporting.





Related Products

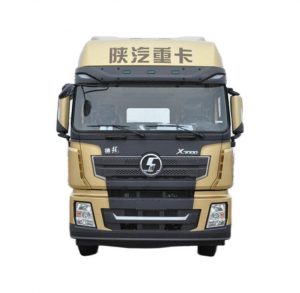

shacmanX3000
SHACMAN X3000 Tractor Truck

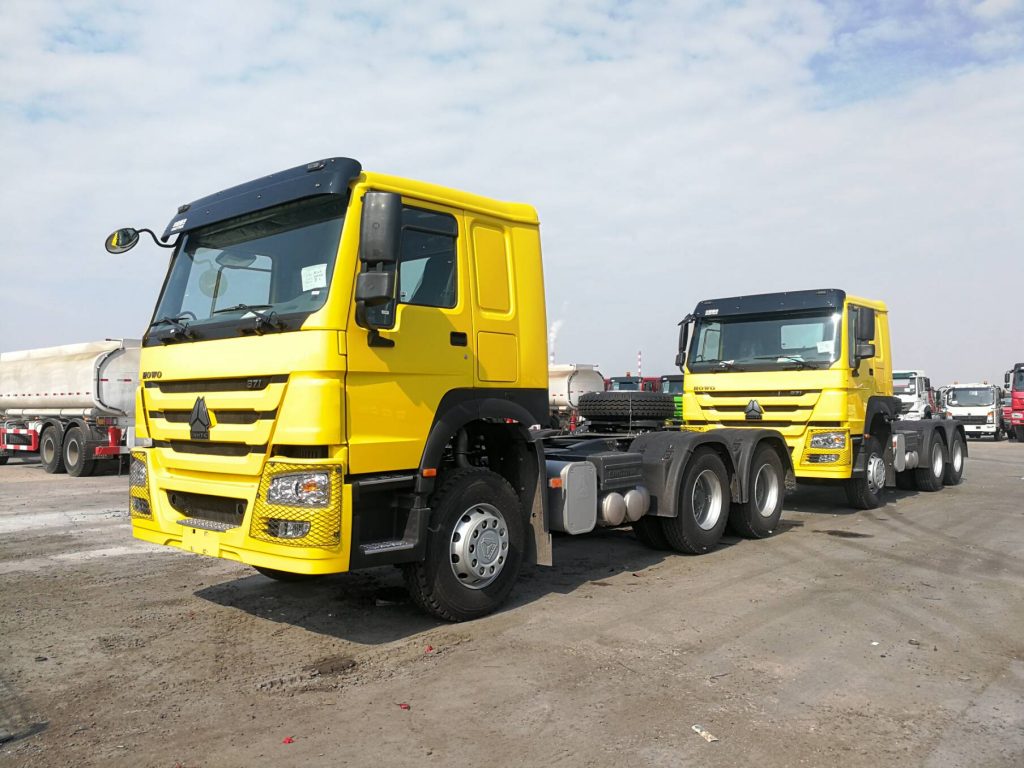

SINOTRUK SHACMAN 6X4 371HP Head Tractor Truck (4)1

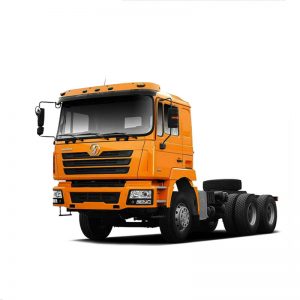

SHACMAN F3000 Tractor Truck
