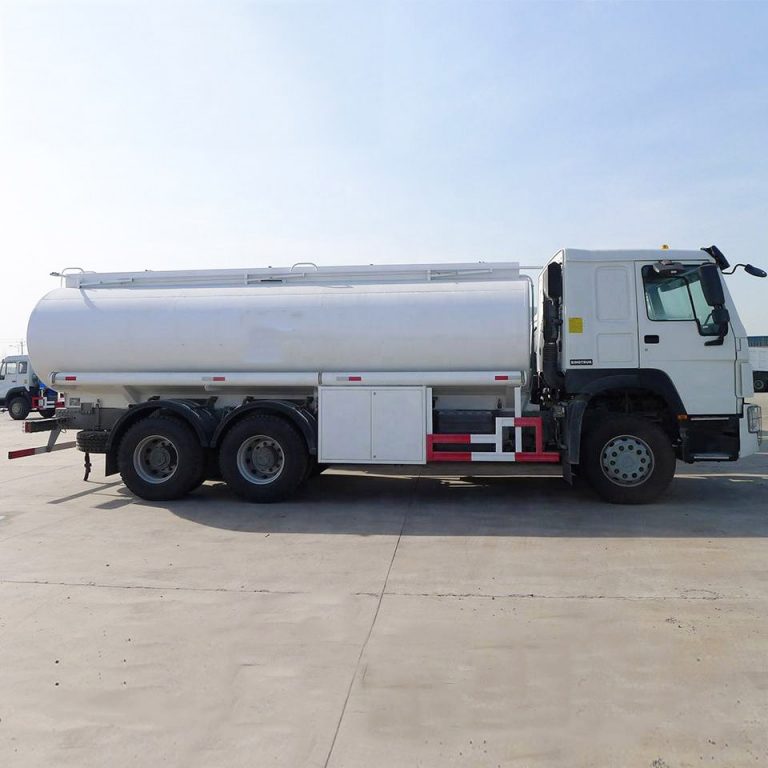

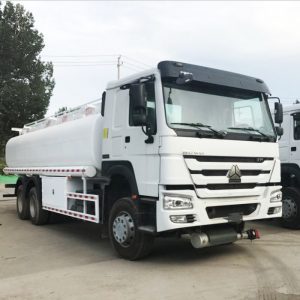

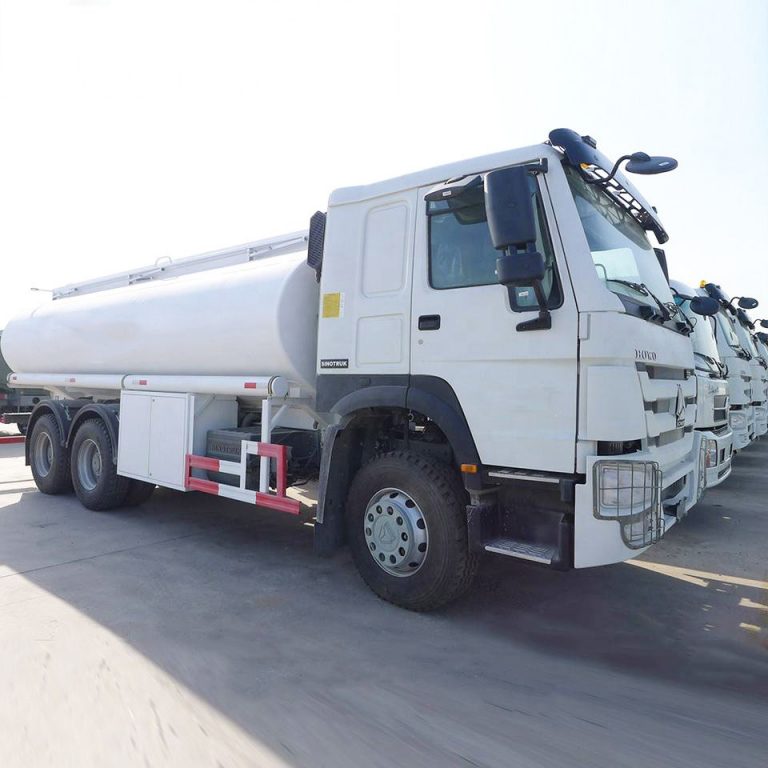

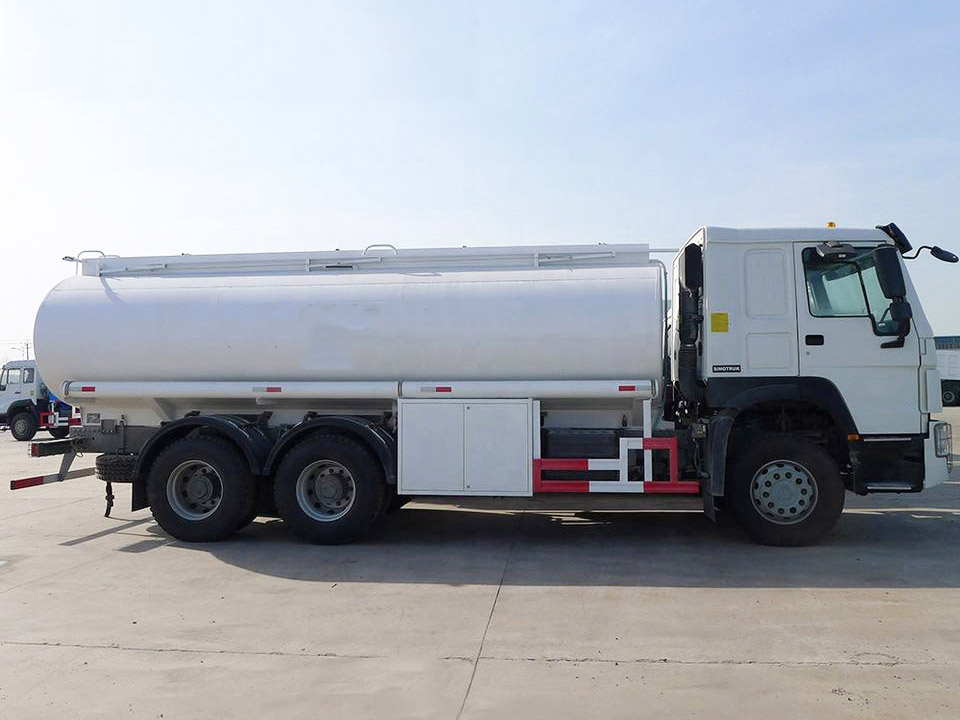

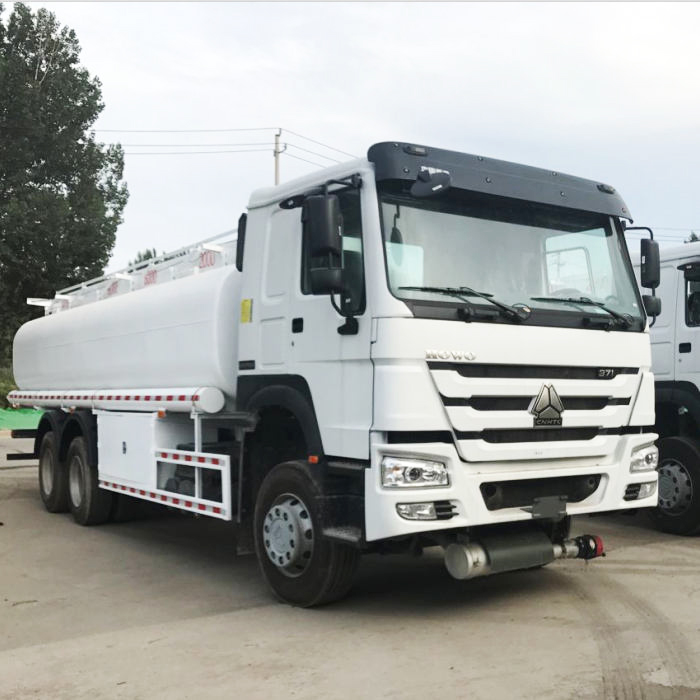

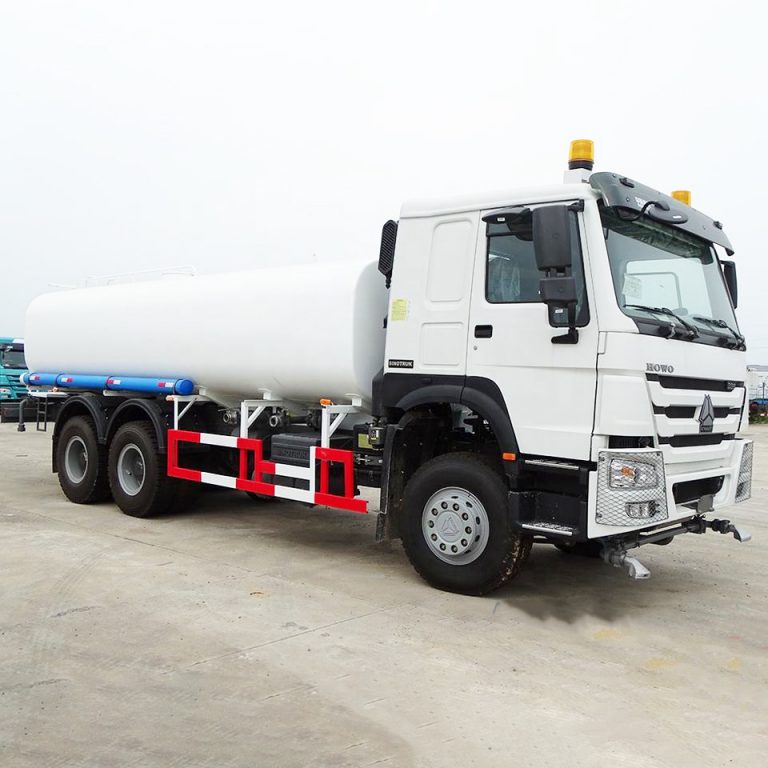

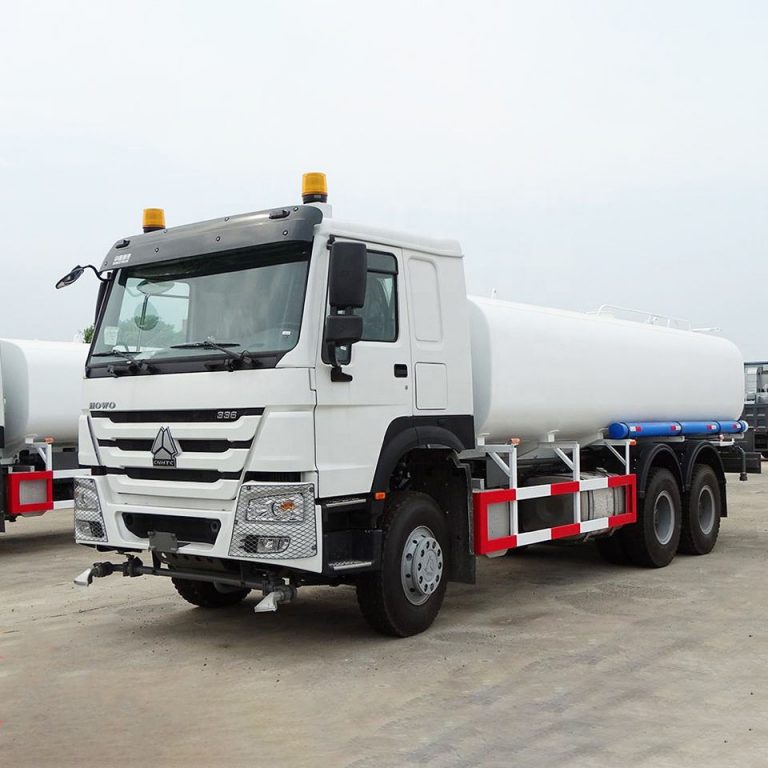

Sinotruk Howo 6×4 Oil Tank Truck

Product Parameters

SINOTRUK HOWO 6×4 Oil Tank Truck – 20 CBM

Chassis Model:ZZ1257M4647C

Driving Type：Left Hand Driving (Right Hand Driving is optional)

Engine：Diesel 4-stroke direct injection diesel engine/6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Emission Standard：Euro 2（Optional:Euro3/Euro4/Euro 5  ）

Displacement：9.726 L

Fuel Tank:300 L

Cargo Body:20 CBM

Overall Dimension:9700*2550*3500 mm

Transmission:HW15710, 10F & 2R, with PTO

Steering: ZF power steering, model ZF8118, hydraulic steering with power assitance

Front Axle:HF9, 1×9000 KGS—–Steering with doubleT-cross section beam

Rear Axle:HC16, 2×16000 KGS—-Pressed axle housing, central single reduction with hub reduction and with          differential locks between wheels and axles

Propeller Shaft:Double universal joint propeller shaft with gear-shaped coupling flange

Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced sub-frame all cold riveted cross members

Front suspension:10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Tires：315/80R22.5, tubeless tires with one spare tire（Optional: 12.00R20, radial tires）

Cabin:HW76 cab, with one sleeper and  two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber

Light: Lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Product Introduction

Howo fuel tanker truck has been equipped with computer fuel dispenser. It could be used as the mobile filling station. Then the truck is with great flexibility. According to different needs, it is always used in city, suburb, mining plants, wharf, airport, bus station, country road, and many other places where there is no filling station. The fuel tanker truck has brought great convenience for people who have to get the station for the truck. And it actually can be called as the mobile filling station.
