LUCKIN Tanker Semi Trailer for Sale, which is normally used to transport asphalt and bitumen for construction using. We would support designing and production according to customers’ different needs, such as sizes, axles, suspensions, box types and capacity.
Lead Time：20 days
Shipping Port：Any Port Of China
Payment：T/T;L/C
Tank Body
Shape：Optional (Round or Square)
Dimension： 11500mm*2500mm*3900mm (Exact size depends on the final design)
Tare weight： About 10500KGS
Total Volume（m3）： 35 m³
Tanker Body Material ：5mm Q235 carbon steel
End Plate： 5mm Q235 carbon steel
Manhole Cover： Carbon steelφ500mm
Bottom Valve/Glass Wool： Thickness is 50 or 80 mm
Heating pipe： Four pieces in one row
Discharging Valve： Diameter is 6 inches
Compartments： 1
Discharging Pipe： 4” rubber hose, 2 pcs, 6m/each
Cat Walk： With (Common model or special design)
Chassis
Main Beams： Weldding design, Q345 carbon steel material
Axle： 3 axles, FUWA brand
Landing Gear： CHINA BRAND 28T
King Pin： JOST 3.5 inches bolt-in king pin
Suspension： Mechanical suspension
Leaf Spring 90(W)mm*13(Thickness)mm*10 Layer
Pneumatic Braking System WABCO RE 6 relays valve; Spring braking chamber; 2 pcs 45L air tanks.
Rim 9.00-22.5 China Brand
Tire 315 80R22.5 Brand can be Optional
ABS Optional
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box
Shipping Terms By Bulk Cargo, RORO
Product Introduction

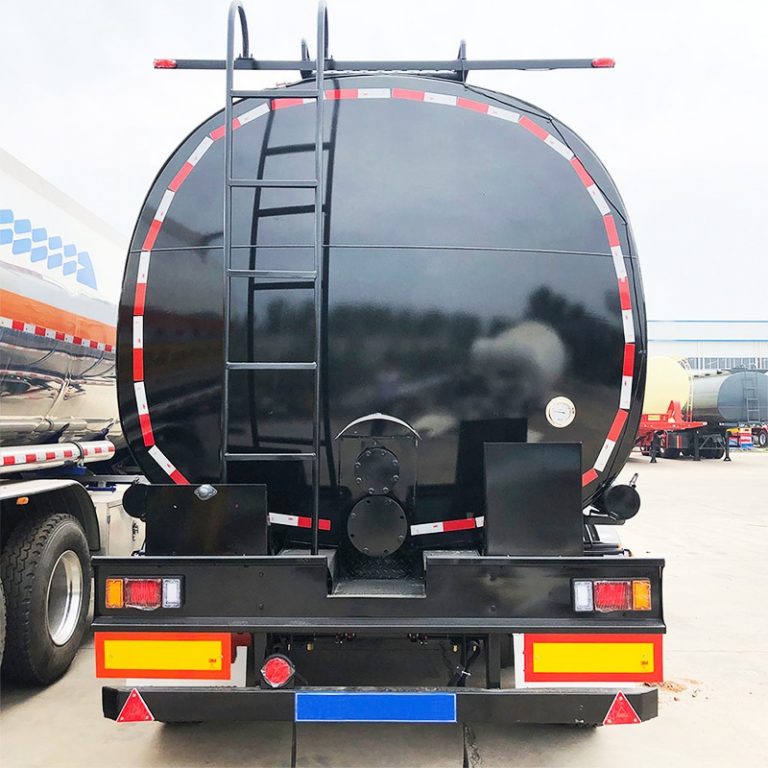

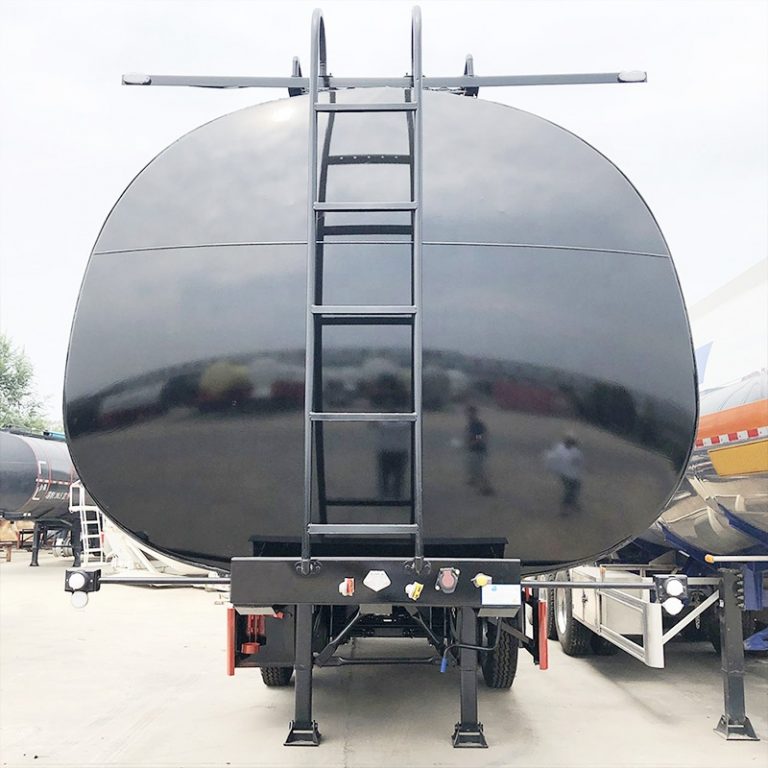

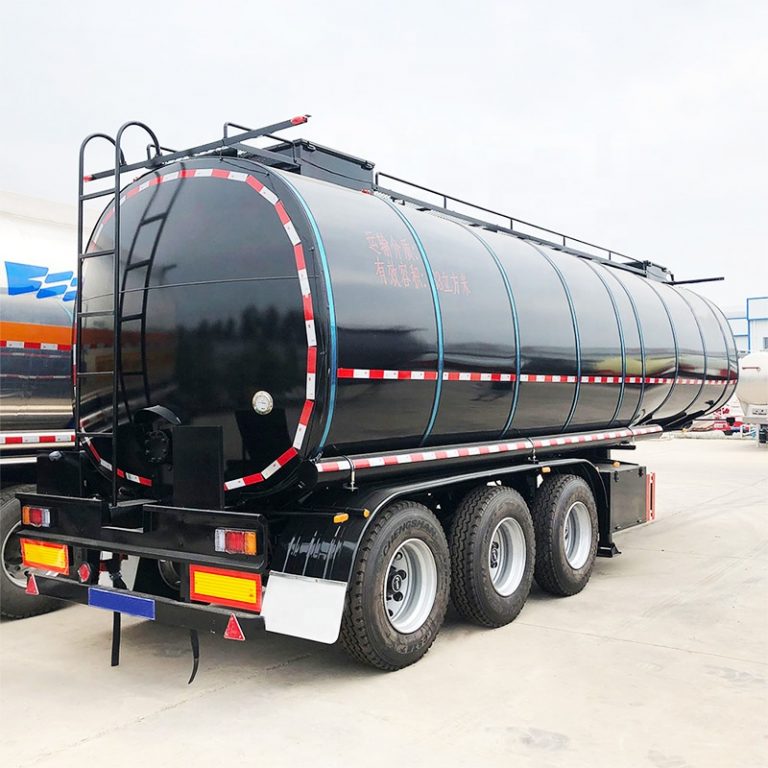

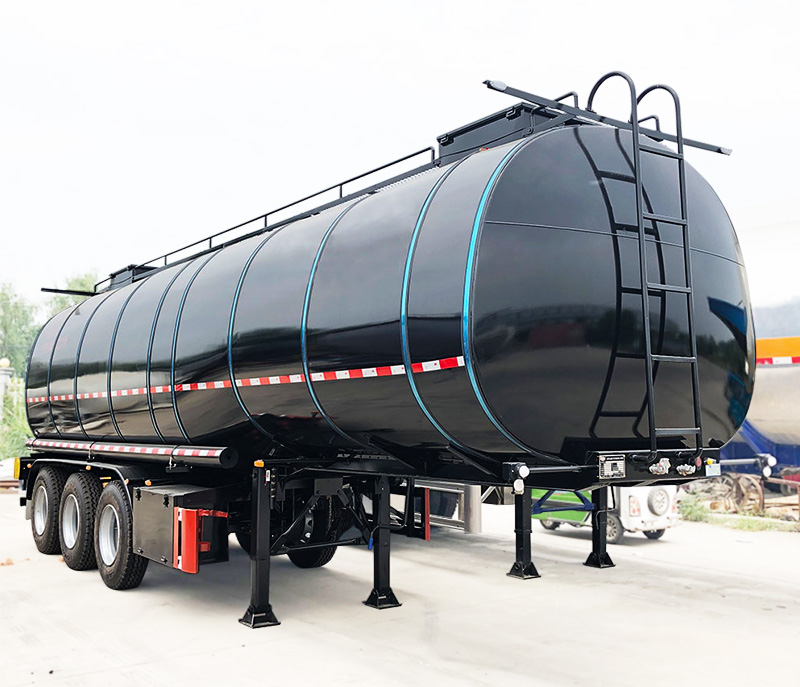

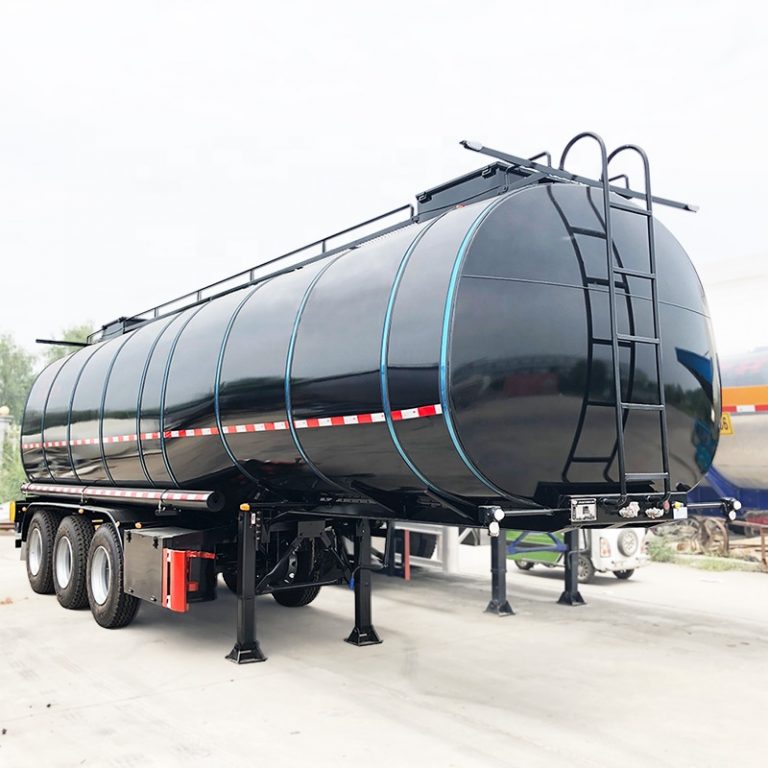

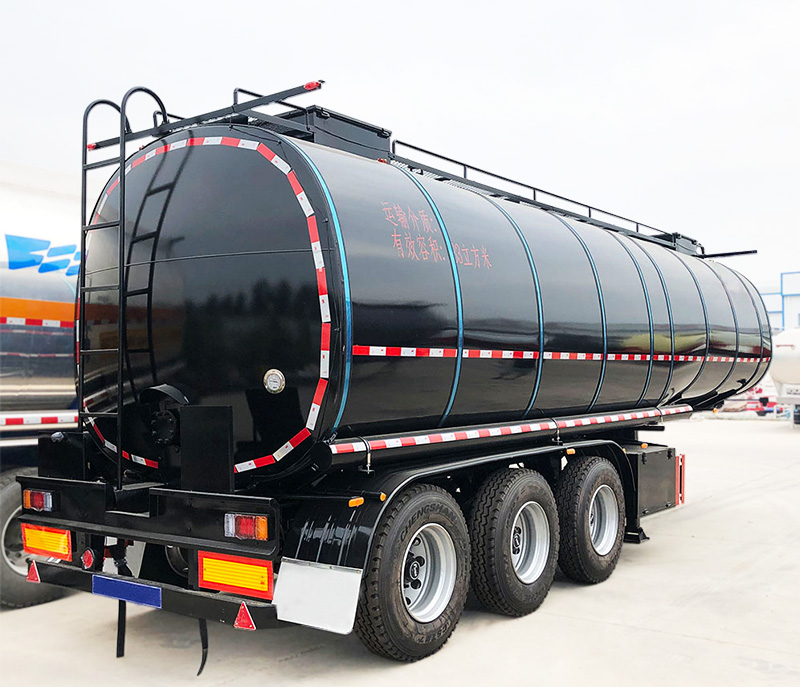

LUCKIN VEHICLE 3 Axles Liquid Asphalt Heated Bitumen Transport Tanker Semi Trailer for Sale, designed with a lower center of gravity to ensure greater stability, generally with heating system and warm keeping system. Bitumen tanker semi trailer, also known as asphalt tanker semi trailer, is composed of automobile chassis, asphalt tank, asphalt pumping and spraying system, heat conduction oil heating system, hydraulic system, combustion system, control system, pneumatic system, and operating platform.
LUCKIN VEHICLE is top professional and experienced manufacturer and supplier of all kinds of trailers and semi-trailers. Our Hot Selling Liquid Tanker Asphalt Bitumen Tank Truck Semi Trailer for Sale adopts Q345B carbon high-tensile steel material, welded by automatic Submerged-Arc processes. We adopt world famous brand of parts, like JOST, WABCO braking valve etc. We can also produce the tank trailers for different liquid like Fuel, Petrol, Diesel, Crude oil, Bitumen, Palm oil, JET A-1, Water, Liquid chemical, Food oil etc.
The tank body of LUCKIN VEHICLE 3 Axles Liquid Asphalt Heated Bitumen Transport Tanker Semi Trailer for Sale material can be carbon steel, stainless steel, aluminum alloy, which depends on the transport requirements. We are manufacturer, provide customized service, design as the customers’ every request, we can customize different volumes and compartments. We have professional trailer design department, rich production experience, short delivery time. Our factory has passed ISO9001 quality system certification. Our phone service 24 hours service for you. Our cooperation can be ODM or OEM mode.
LUCKIN VEHICLE promises that “Good is not enough when better is available.”We sincerely look forward to your visiting and calling.
