Product Parameters
| Model | Capacity (kg) |
Track(mm) | Axle Tube (mm) |
Brake Size | PCD (mm) |
Total Length (mm) |
Recommended Wheel |
| QLVGA-F12T | 12000 | 1840 | ○127 | 420*180 | 335 | 2165 | 7.5V-20 |
| QLVGA-F14T | 14000 | 1840 | ○127 | 420*200 | 335 | 2185 | 7.5V-20 |
| QLVGA-F16T | 16000 | 1850 | □150 | 420*200 | 335 | 2185 | 7.5V-20 |
| QLVGA-F18T | 18000 | 1850 | □150 | 420*220 | 335 | 2185 | 7.5V-20 |
| 1. Provide customized services. 2. It can be equipped with ABS brake. | |||||||
Product Instruction:

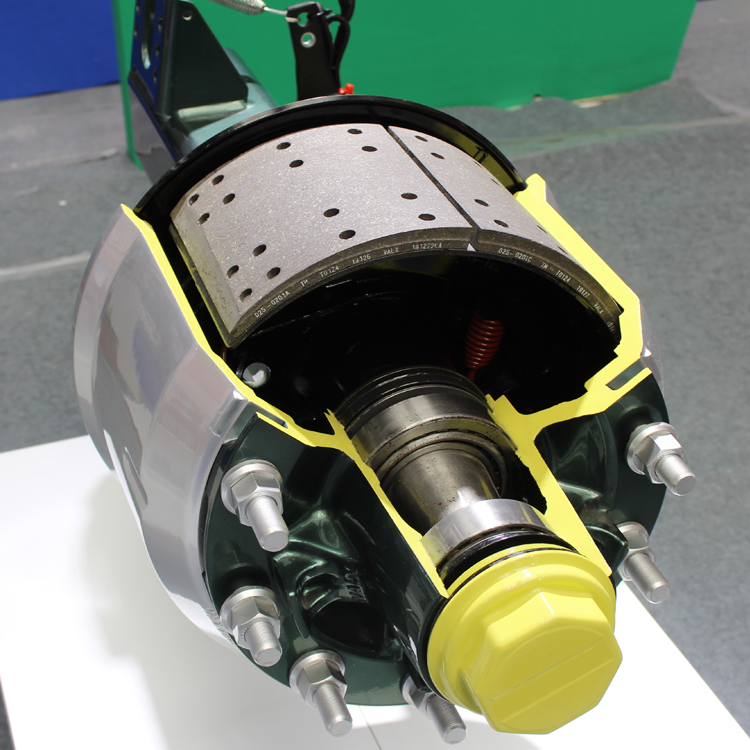

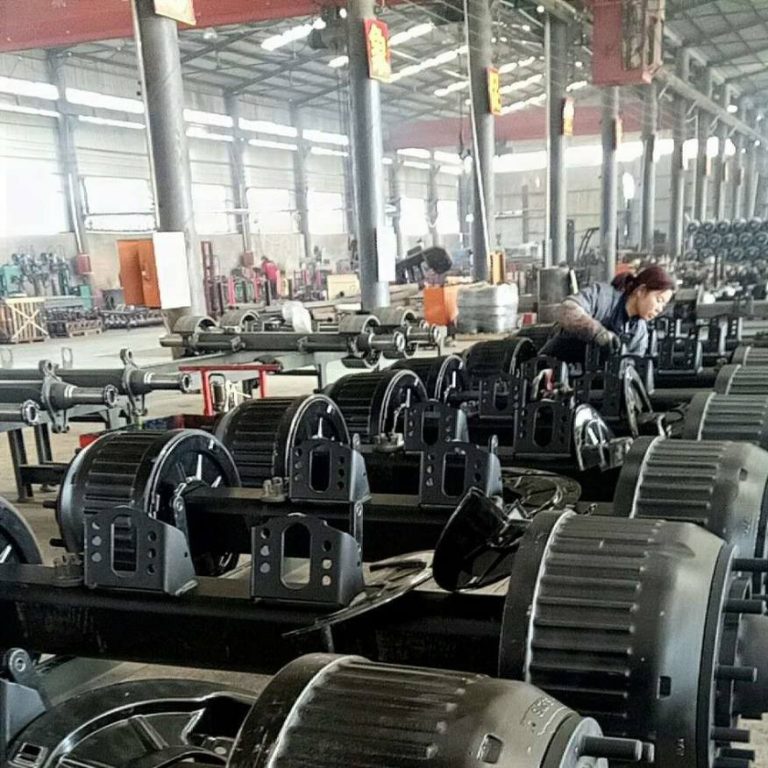

There are two kinds of axles, one-piece axle tube and welded tube, solid axle head, long service life.High-qualitynon-asbestos environmental protection friction plate, good performance, easy to replace.Bearings are high-frequency hardened,with large bearing capacity, high speed and safe use.The tire bolts are made of alloy steel with high strength. Equipped with two positioning sleeves.
