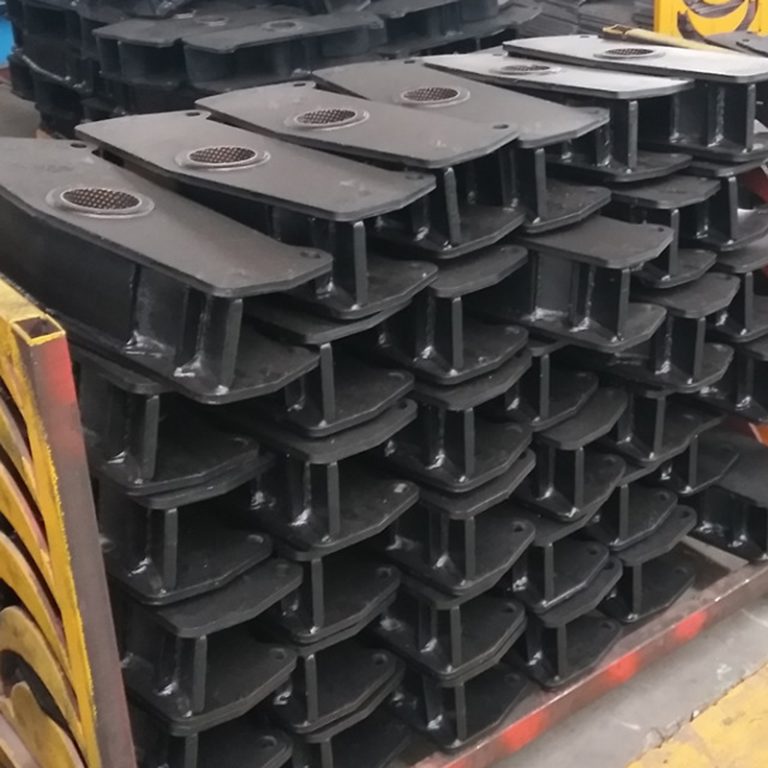

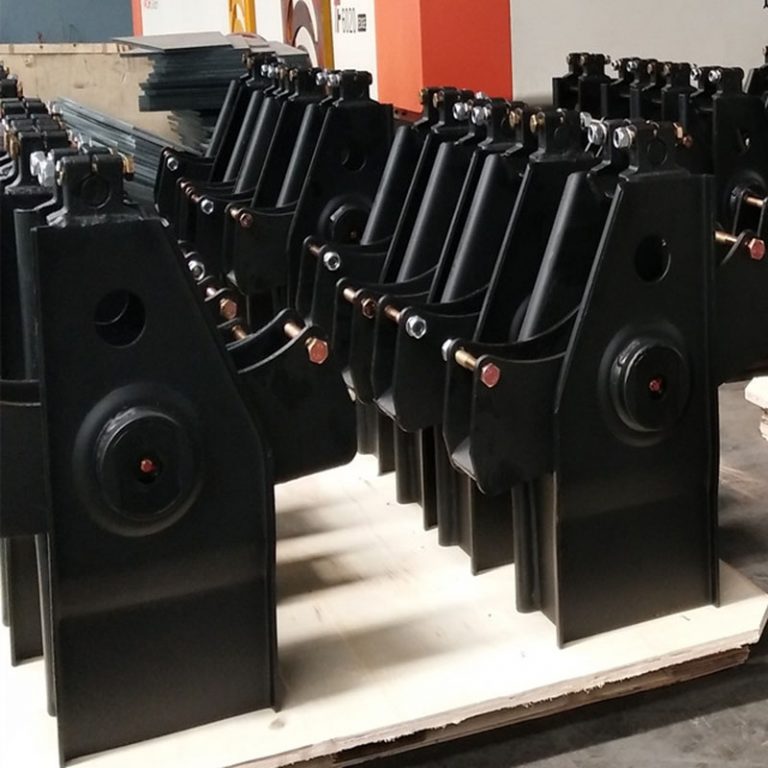

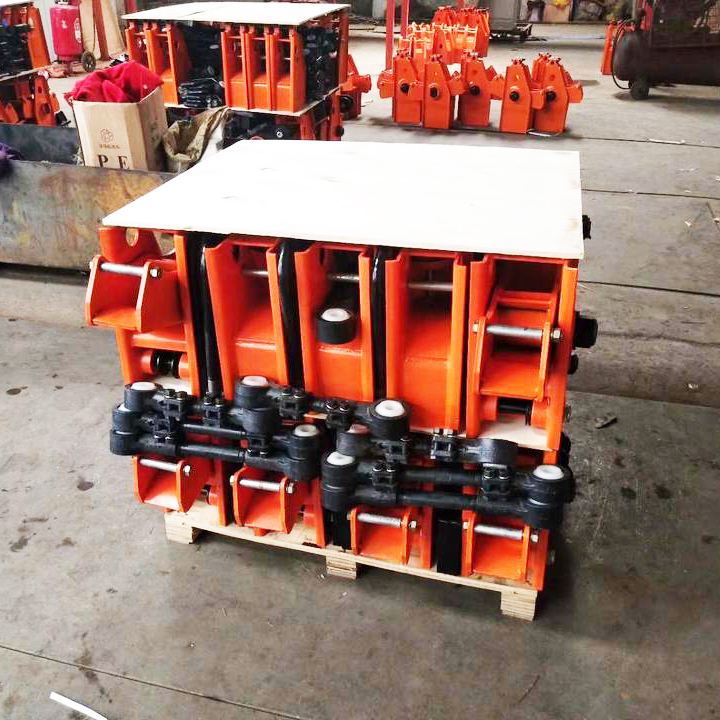

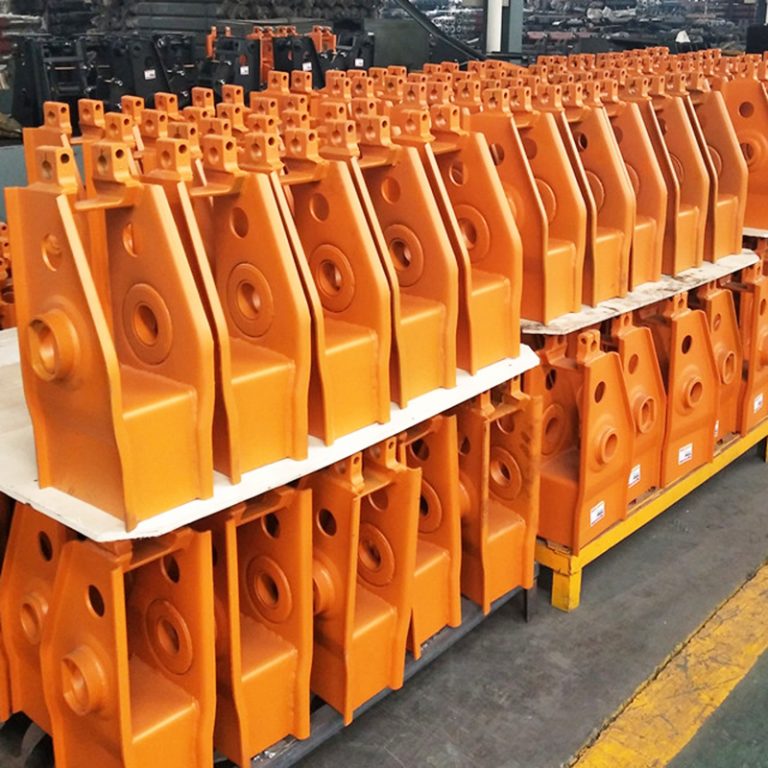

The suspension is stamped and welded with Q345 steel plate material, which is light in weight and strong in rigidity. The leaf spring will not shift during use.
Suspension can be matched with different width/ thickness/number of pieces, we can recommend the number of leaf springs according to the load. Use high-quality steel, long life and large load.
Lead Time：20 days
Shipping Port：Any Port Of China
Payment：T/T;L/C
Products Parameters
| Model | Height Of Towing Plate | L1
(mm) |
L2 (mm) |
L3 (mm) |
L4 (mm) |
L5 (mm) |
H (mm) |
| QLVAS-2/3180 | 1180 | 485 | 1310 | 495 | 1135 | 1155 | 180 |
| QLVAS-2/3230 | 1230 | 485 | 1310 | 495 | 1135 | 1155 | 230 |
| QLVAS-2/3270 | 1270 | 485 | 1310 | 495 | 1135 | 1155 | 270 |
| QLVAS-2/3320 | 1320 | 485 | 1310 | 495 | 1135 | 1155 | 320 |
|
1. Can be equipped with 13/16/20T axles. 2. Can be equipped with round shaft/square shaft. |
|||||||
Products Introduction

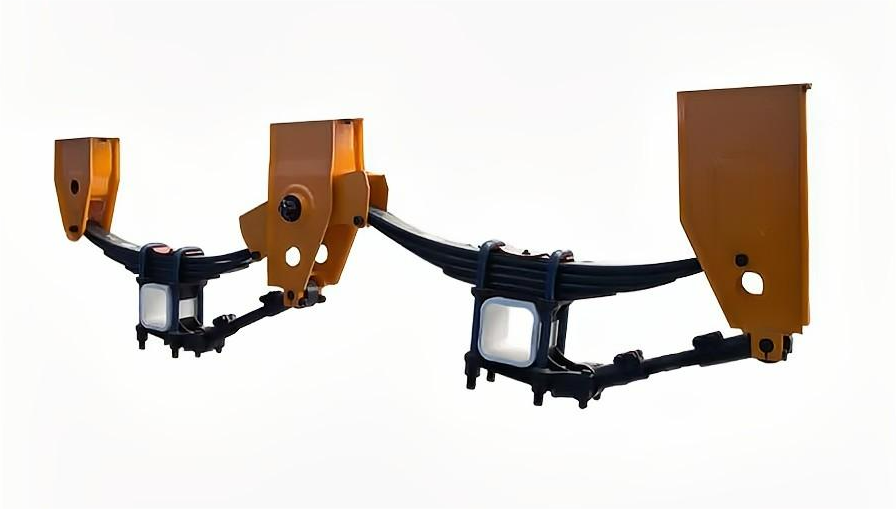

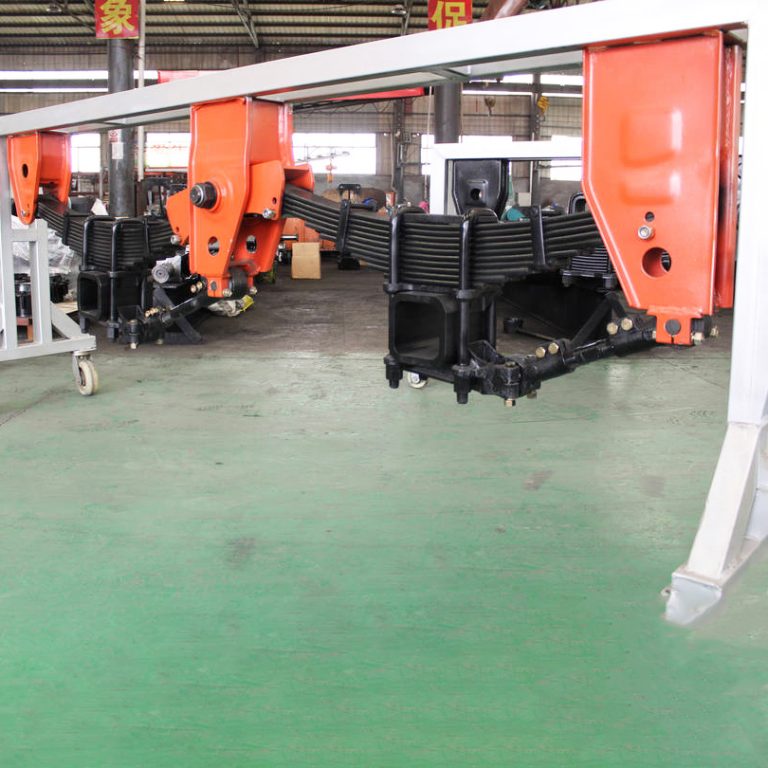

There are two types of American suspensions: leaf spring and coil spring. The leaf springs are made up of curved metal plates with a hole at one end, which are then inserted into holes in the frame on either side. The coil springs consist of steel coils that have been wound together to form a flexible tube.
The American suspension is designed to provide flex in all directions for trailers, which makes it easier for it to move over uneven terrain without damaging any cargo inside. This type of suspension also has a high clearance, so it can be used on rough roads or steep inclines without damaging any cargo inside.
LUCKIN VEHICLE promises that “Good is not enough when better is available.”We sincerely look forward to your visiting and calling.
