Air suspension is a type of vehicle suspension that uses pressurized air in a sealed system to provide springing and damping. It can be used for cars, trucks, buses, and trains.

Lead Time：20 days

Shipping Port：Any Port Of China

Payment：T/T;L/C

Chat Now

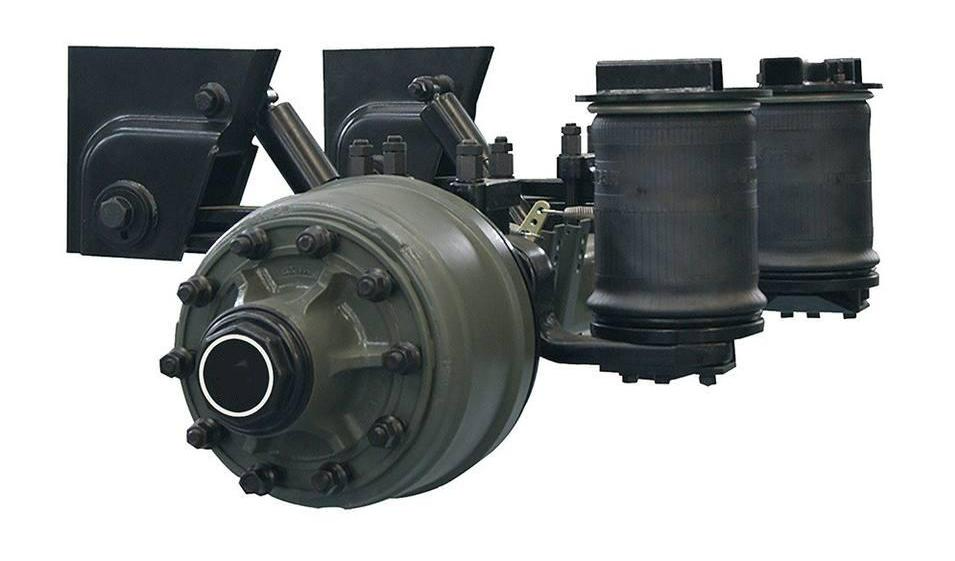

Air suspension

Product Parameters

Model	H (mm)	Offset Distance (mm)	Axle Spacing (mm)	Air Bag Spec (mm)	Axle Load (kg)
QLVGAS-38010	380	90	1220-1360	∅360	10000
QLVGAS-43012	430	90	1220-1360	∅360	12000
QLVGAS-48012	480	90	1220-1360	∅360	12000
QLVGAS-38013	380	90	1220-1360	∅360	13000
QLVGAS-43013	430	90	1220-1360	∅360	13000
QLVGAS-48013	480	90	1220-1360	∅360	13000

Product Instruction

Air suspension was first patented in 1904 by Arthur W. Cogswell.and it is a type of pneumatic system.it is used on some heavy vehicles such as buses ,trucks and all kinds of trailers to improve load capacity and ride quality over rough terrain while also improving fuel efficiency when compared with conventional leaf springs or coil springs at normal loads

The air suspension is mainly composed of a control computer, an air suction hole, a vent hole, a pneumatic front and rear shock absorber and an air distributor. Control the horizontal posture of the body: adjust the stability system of the body.Frankly speaking, the contents of the air suspension control include the height of the vehicle body, the damping force of the damper, and the spring elasticity coefficient:

1. Control of the height of the car: substandard, elevated and only the rear wheel is raised;

2. The damping force of the damper is controlled by the third gear of low, medium and high;

3. The elastic coefficient of the air spring is divided into two parts: soft and hard.

Air suspension has an irreplaceable advantage over the conventional suspension. Therefore, with the popularization and improvement of this technology, it will inevitably be more widely applied in the automotive industry in the near future.
