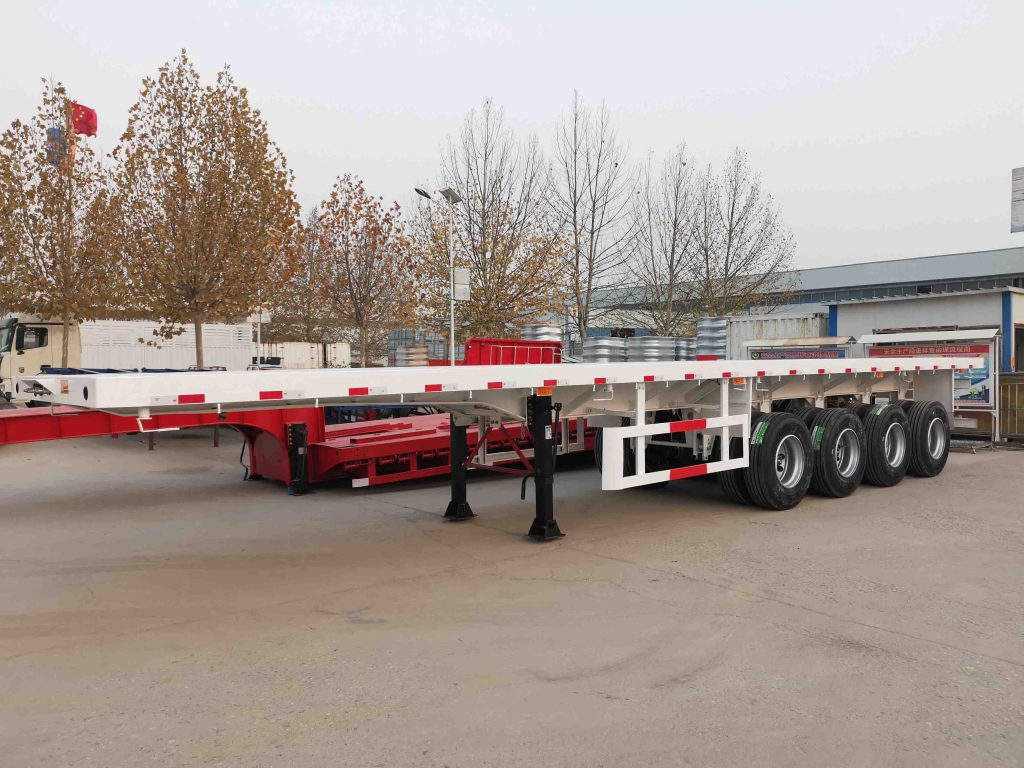

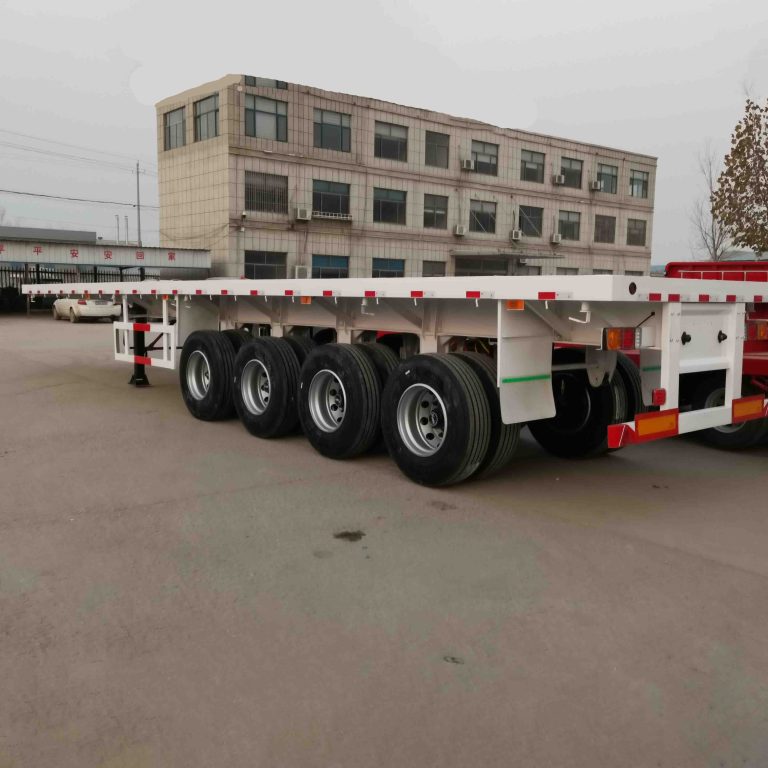

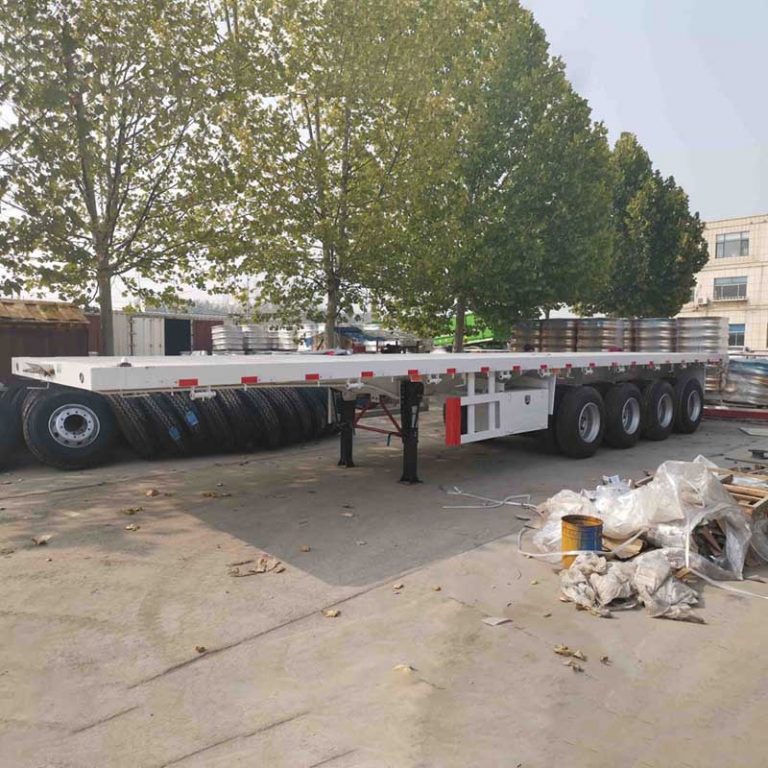

4 Axles Flatbed Semi Trailer With Air Suspension

Product Parameters

Tare Weight: about 7.2 T;

Payload: 60 T;

Dimension (L*W*H): 12500mm*2500mm*1500mm;

Main beam: 500mm height, top plate 14mm thickness*140mm width, bottom plate 16mm thickness*140mm width, middle plate 8mm thickness;

Twist lock: 4+4/8/12 pcs, which could support 1×20” container, 2×20” containers or 1×40” container one time;

Platform: 3mm thickness checkered plate

King pin: JOST 2.0/3.5 inches (bolted or welded);

Axles: BPW/FUWA/ZY brand, 13T, 3pcs;

Suspensions: Mechanical suspension (America type or German type);

Leaf springs: 10 layers 90mm*16mm, 6 units;

Tires: 11R22.5/12R22.5/11.00R20/12.00R20/315/80R22.5/385/65R22.5, 12pcs+1pc spare tire;

Rims: 9.0-22.5, 13pcs;

Landing gear: JOST 28T, Linkage Outrigger;

Spare tire carrier: 1pc;

Tool box: 1 unit;

ABS: Optional

Brake system: WABCO 6 relays valve; T30/30+T30 air chamber, 40L air tanks;

Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable.

Accessories: 1 unit tool box, 1 pc spare tire carrier, all set of standard tools.

Others as the factory standard or according to the customer’s requirements.

LUCKIN VEHICLE adopts automatic submerged arc welding method to weld the main beam. The longitudinal beam is completed by automatic tracking submerged arc welding machine. All components are shot peening to improve paint adhesion and are painted prior to assembly, making the main beam stronger and more durable.

We adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life. Besides, all the main parts, used in our trailers, must be processed with advanced equipment and have good reputations in the market.
