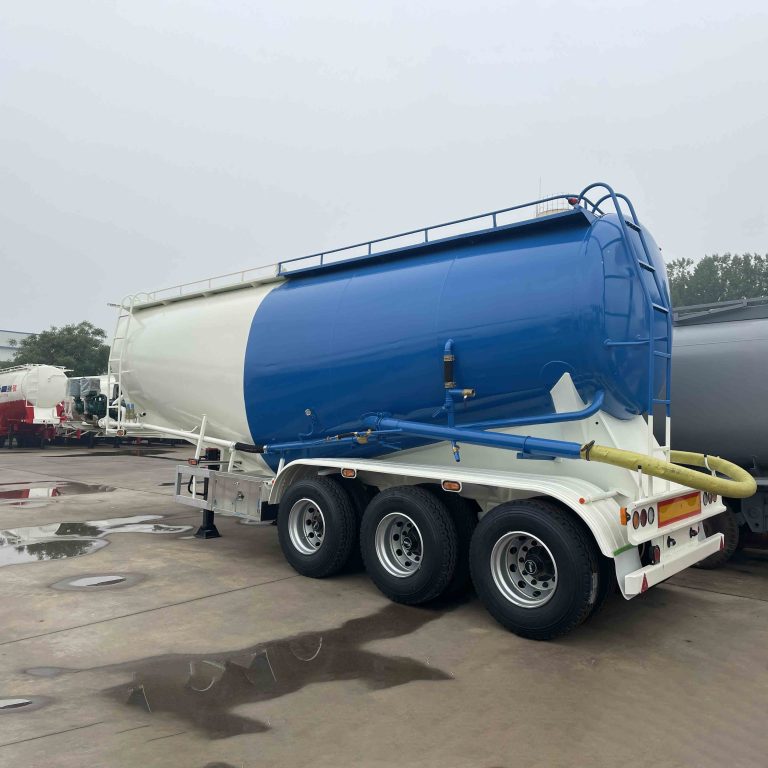

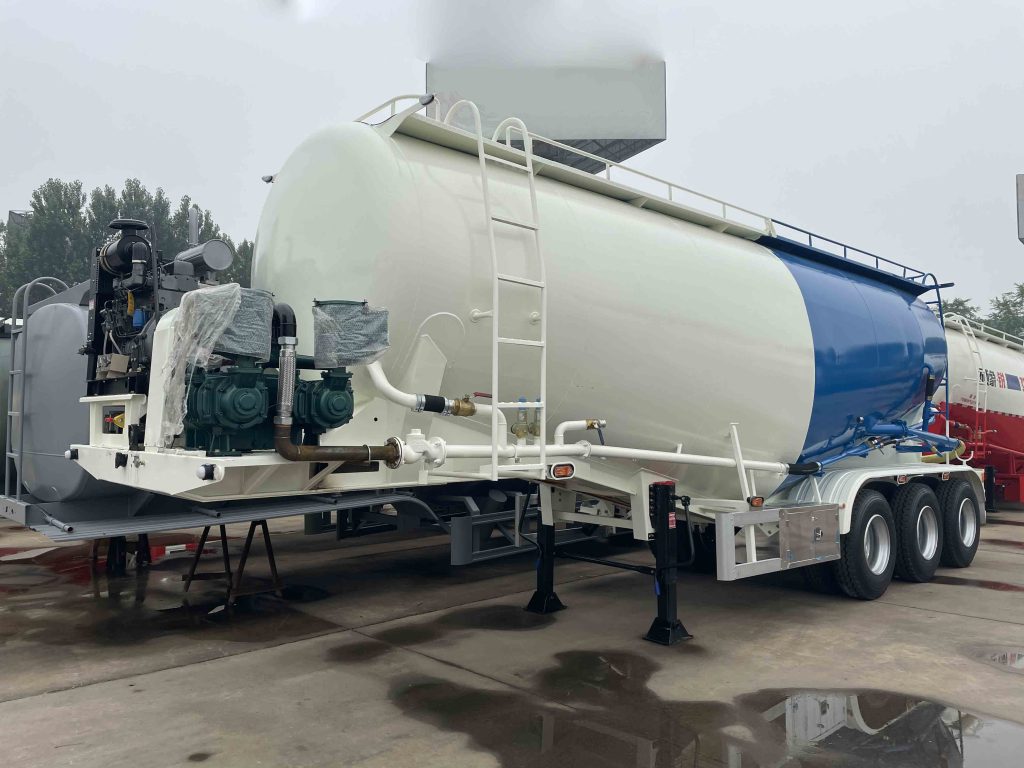

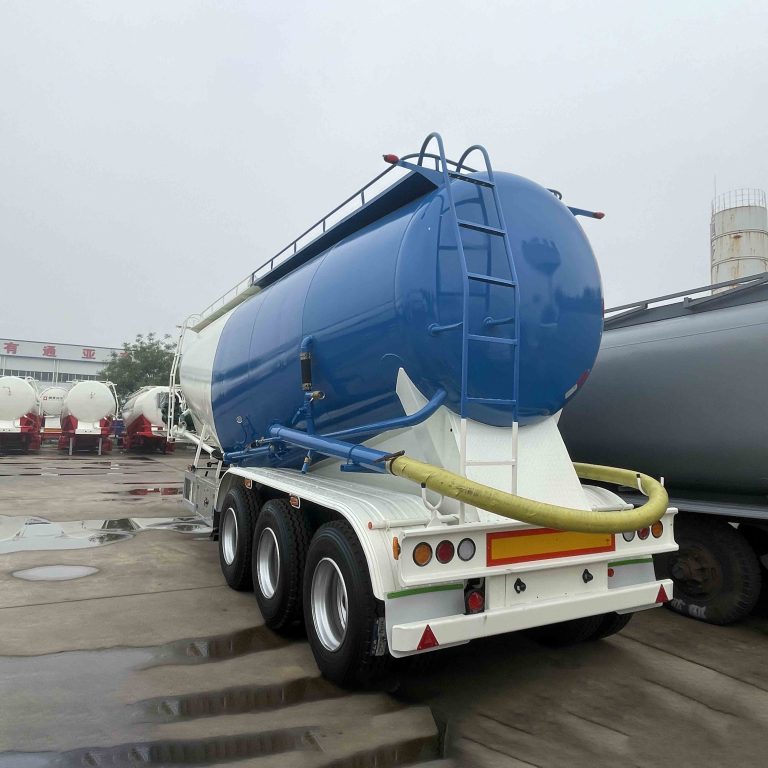

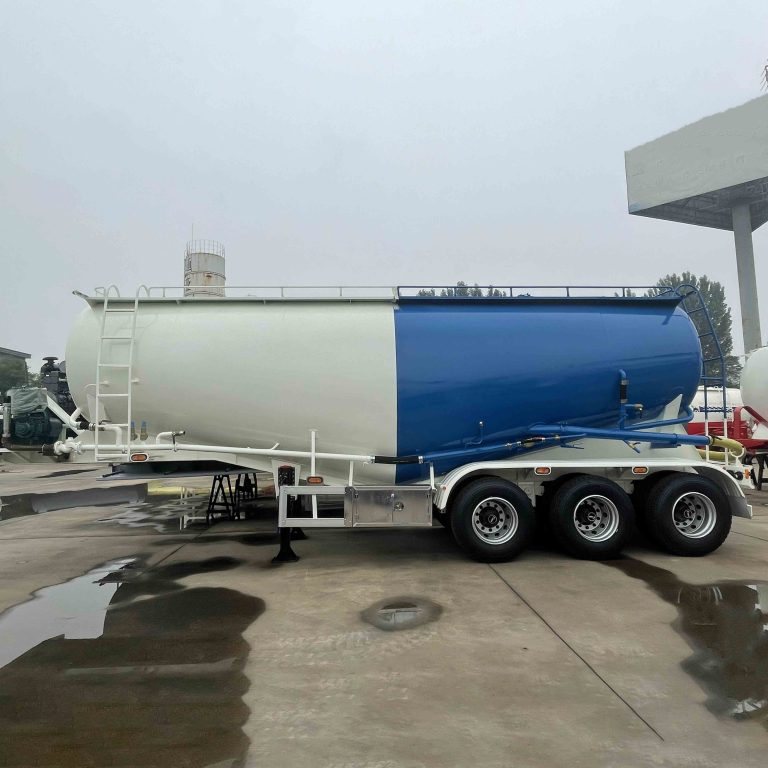

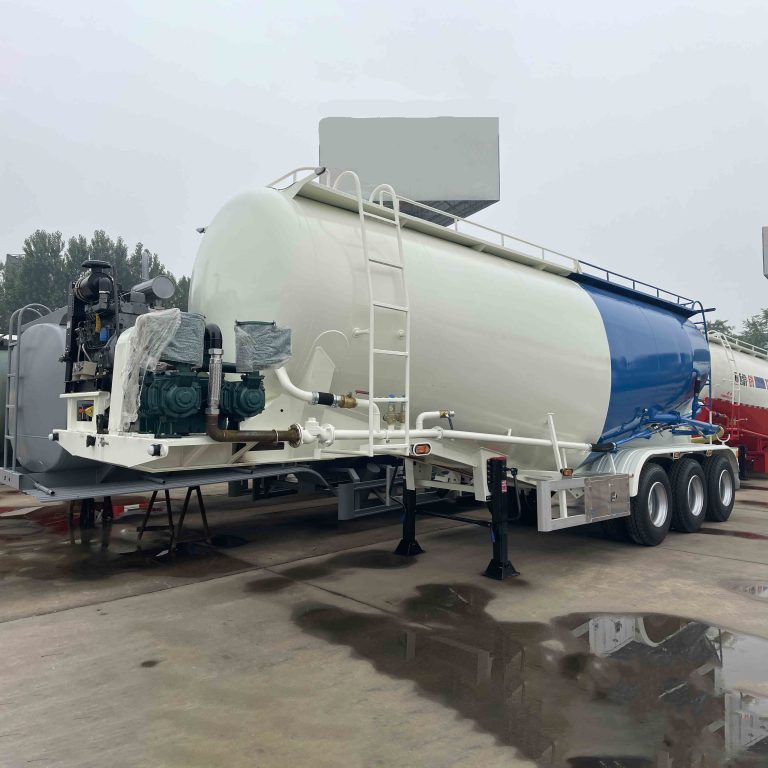

35CBM 3 Axles Alloy Bulk Cement Silo Tank Smei Trailer

Product Parameters

Dimension(L*W*H)：11000*2500*3650 (mm) (Customized Sizes or Designed according to customers’ needs)

Tanker body material：5mm high strength wear-resistance steel

Volume：30CBM To 60CBM

Axles：3 axles

Tire：12 units

Application：BOHAI/KEFA brand transport lime, cement, powder etc.

Tank body thickness：3.5mm

Compressor：BOHAI/KEFA brand 12m³ double cylinder air compressor

Spare tire rack：2 units

Diesel Engine：WEICHAI Brand

Suspension：Heavy duty mechanical suspension

Landing gear：JOST

Brake system：WABCO

Light：LED light (specially intended for oversea markets)

Voltage：24V

Tool box：1 set

Painting：Polyurethane paint, with long service lift, and avoid the vehicle get rust.

Product Introduction

LUCKIN VEHICLE supply 30CBM 3 Axles Cement Bulk Carrier tanker Semi Trailer, which is specially designed for transportation of large quantities of dried dust materials, such as fly ash, cement, lime powder, ore powder, etc., whose particle diameter is not greater than 0.1mm. Cement Bulk Tanker Trailers use pneumatic unloading. When the vertical height of the unloading reaches 15m, the horizontal conveying distance can reach 5m.

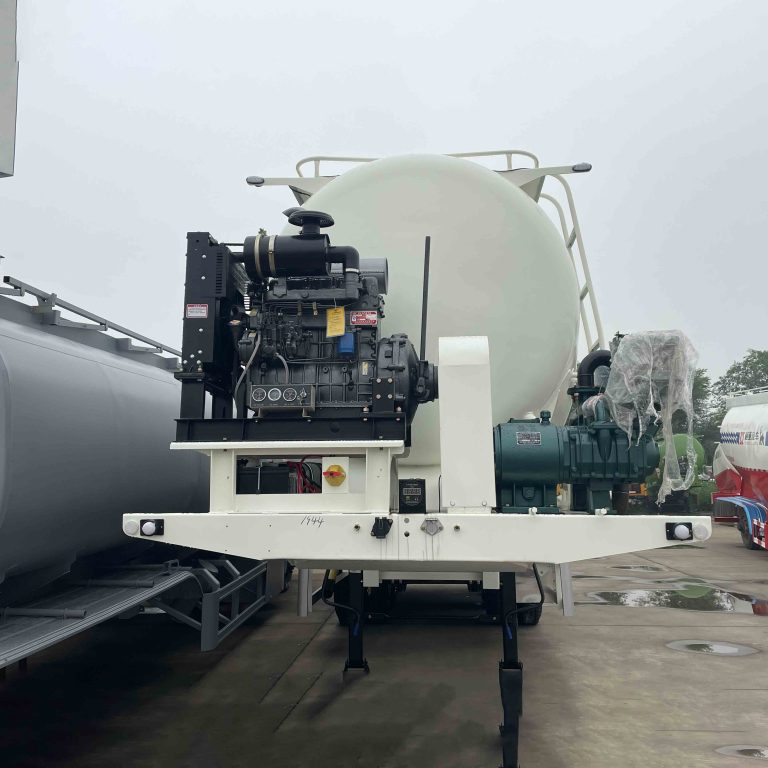

LUCKIN Cement Bulk Carrier Tanker Semi Trailer uses its own engine power to drive the vehicle-mounted air compressor through a power take-off (PTO). The compressed air is sent to the air chamber at the lower part of the sealed tank through the pipelines, then cement on the fluidized bed is suspended into a fluid state. When the pressure in the tank reaches the rated value, the fluidized cement flows through the pipelines for transportation after opening the unloading butterfly valve.

LUCKIN dried bulk cement tank trailers adopt high strength wear-resistant steel. To fabric the most durable tankers, especially for African Market, we have considered the road condition. More durable and stable, it can ensure the tank very firm.
