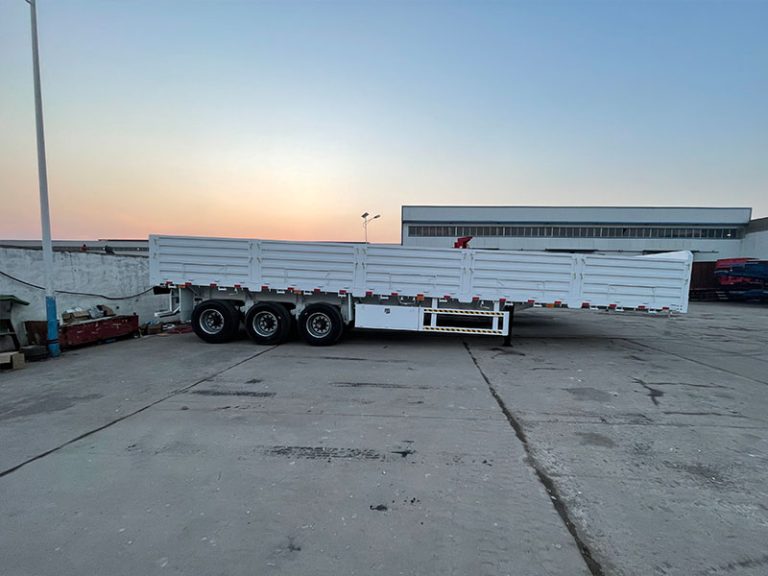

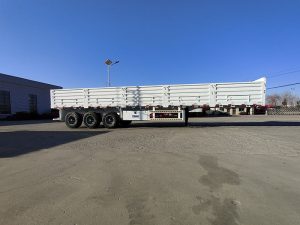

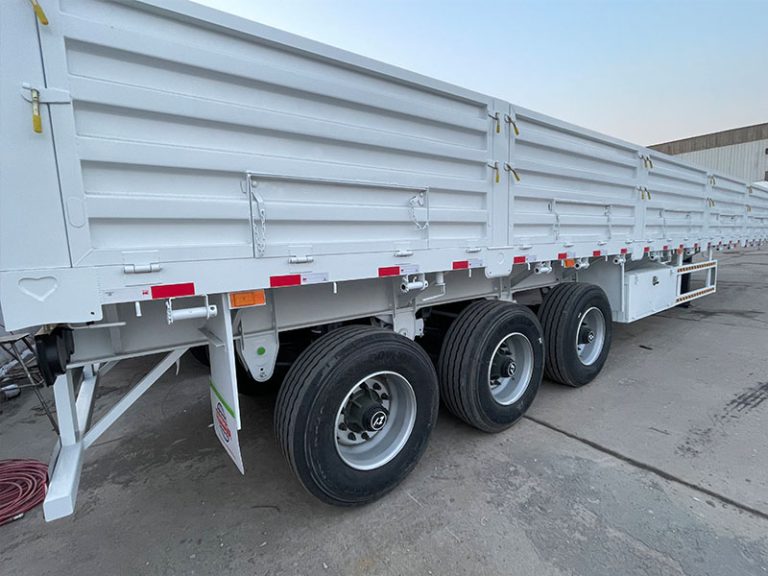

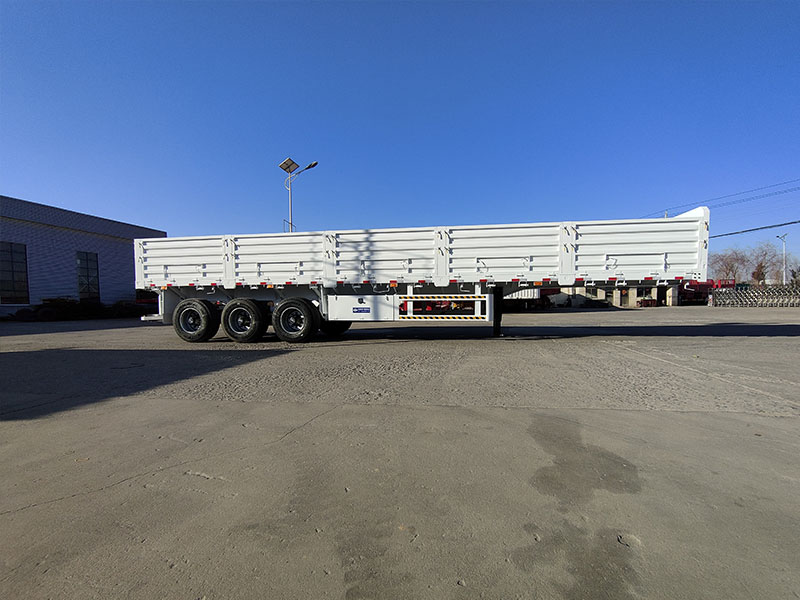

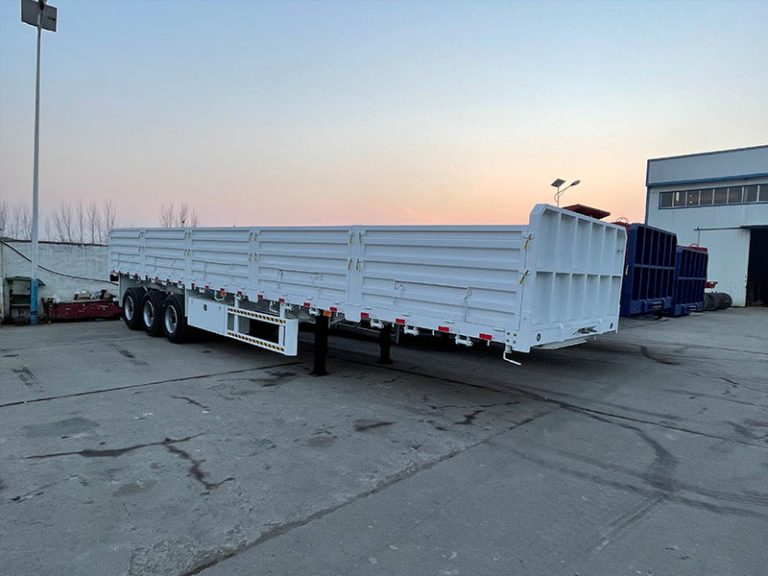

3 Axles Drop Side Flatbed Container Trailer with 1000mm Height Side Walls

Product Parameter

Dimension(mm): 12500x2500x2700mm

Trailer Sides: 1000mm height (Customized by you), with small doors on each door leaf.

Loading capacity(ton): 80T

Axles: 3/4 axles, 13T/16T, FUWA/ BPW Brand

Tire: 12 units, 12.00R22.5

Suspension: Mechanical/Bogie

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand C200T

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valves; T30/30+T30 spring braking chamber (TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Painting: S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting

Accessory: One tool box; one set of standard tools.

Product Introduction

LUCKIN VEHICLE supply 3/4 Axles Drop Side Trailer with 1000mm Height Side Walls, who has a pallet structure and wide range of uses. It is mainly suitable for medium and long-distance transportation of medium, heavy and bulk goods, such as grain, bagged cement, ect.

With 12 container locks on the platform, SUPREME Drop Side Semi Trailer can also load and transport 1X40HQ, 2X20HC or only 1 units 20HC one time when you take off all the side walls and pillars around the trailer.

The trailer’s side panels can be opened for easier unloading and the shape of the side panels can be customized. Drop Side Semi Trailer has become the first choice for medium and long-distance freight vehicles based on its strong applicability, and it becomes the first choice for medium and long-distance freight vehicle for a lot of transport companies in the logistics industry.
