HOT Fence Dolly Drawbar Trailer for Sale

Product Parameters

Loading Capacity: 30T

Dimension(L*W*H):  9800*2600*3060 (mm); (Customized Sizes or Designed according to customers’ needs);

Turntable：20T double bead turntable

Platform: 4mm thickness pattern plate；

Axle：BPW 13 T, 10 holes;

Suspension: Three-axis German type suspension

Leaf spring: 100(W)mm *12mm(Thickness)*12 layers, 6 sets;

Tires: 12.00R20,12pcs

Rim: 9.00-20,12 pcs

ABS: Optional

Brake system: WABCO RE 6 relay valve; T30/30+T30 air chamber, 40L air tanks;

Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable.

Color: Optional

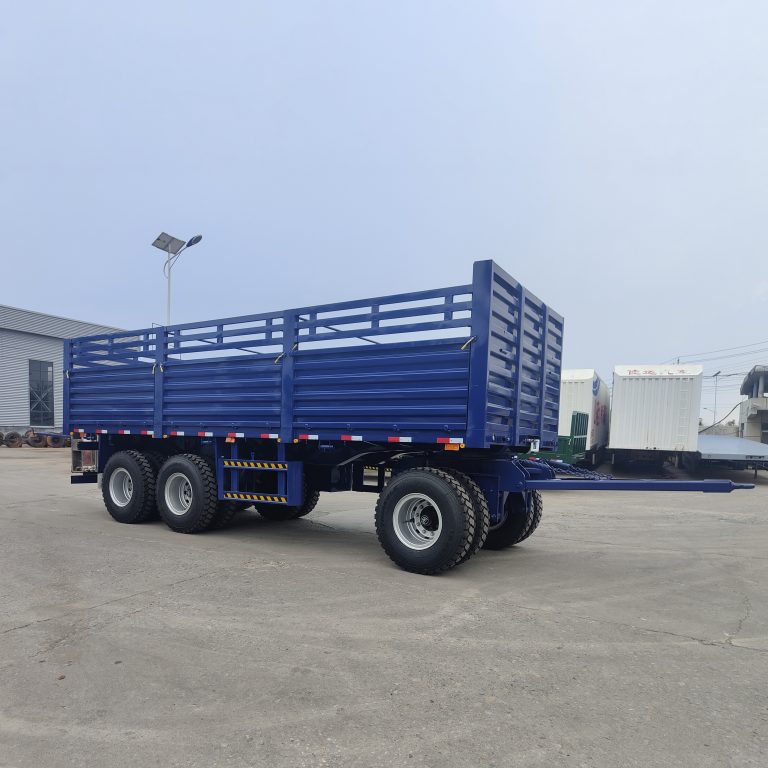

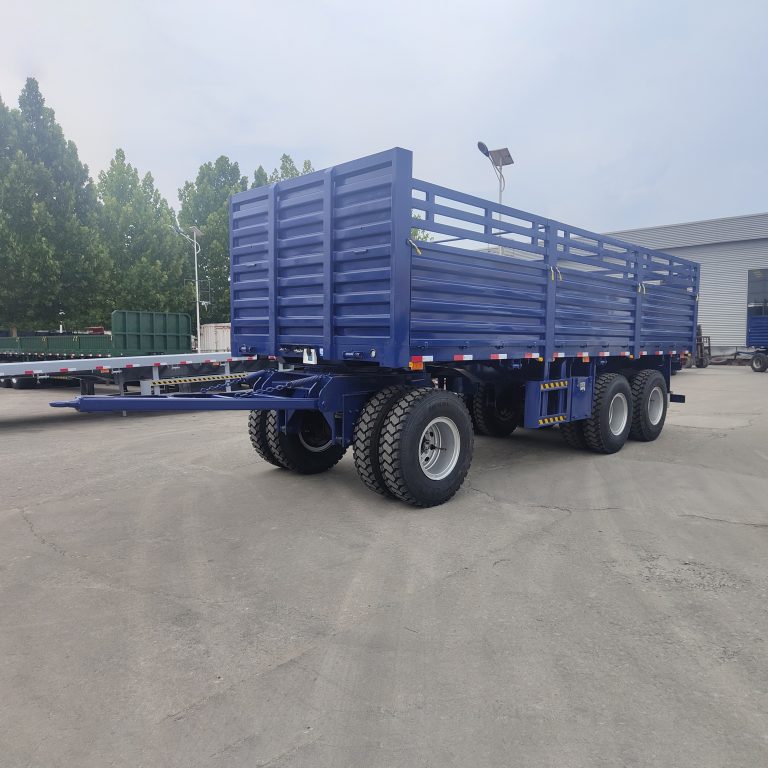

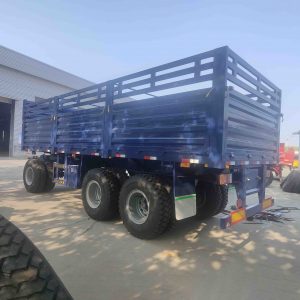

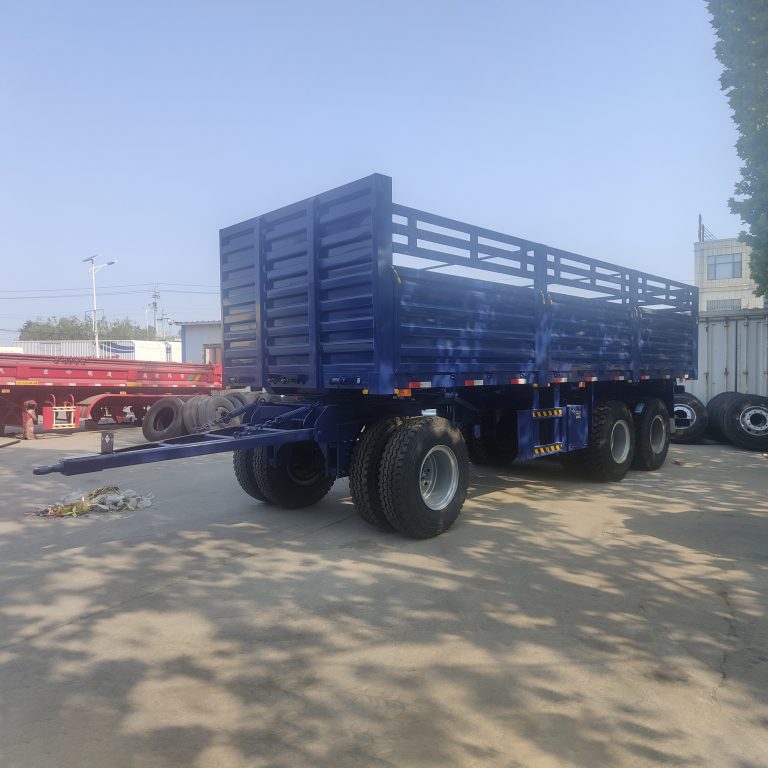

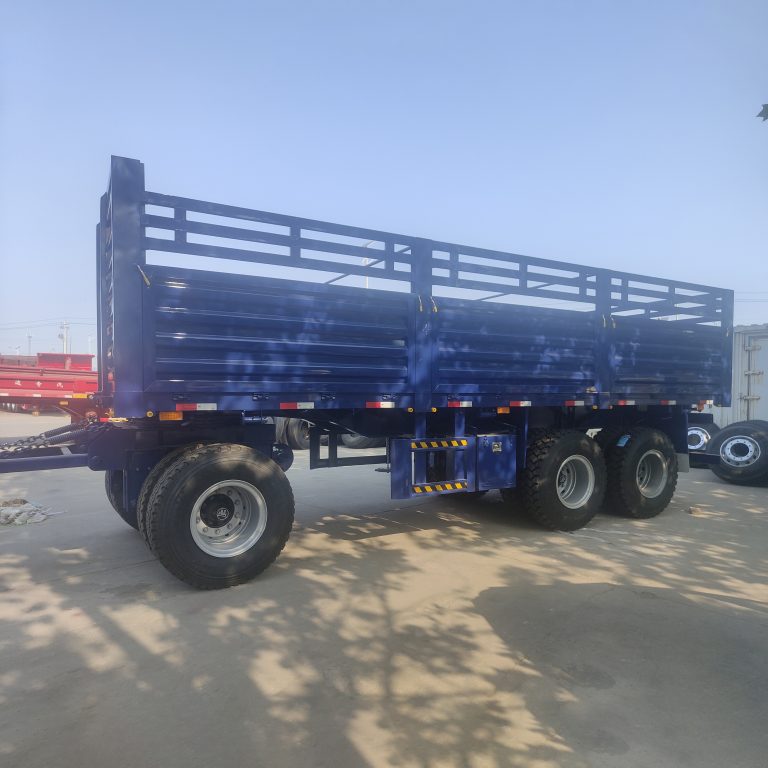

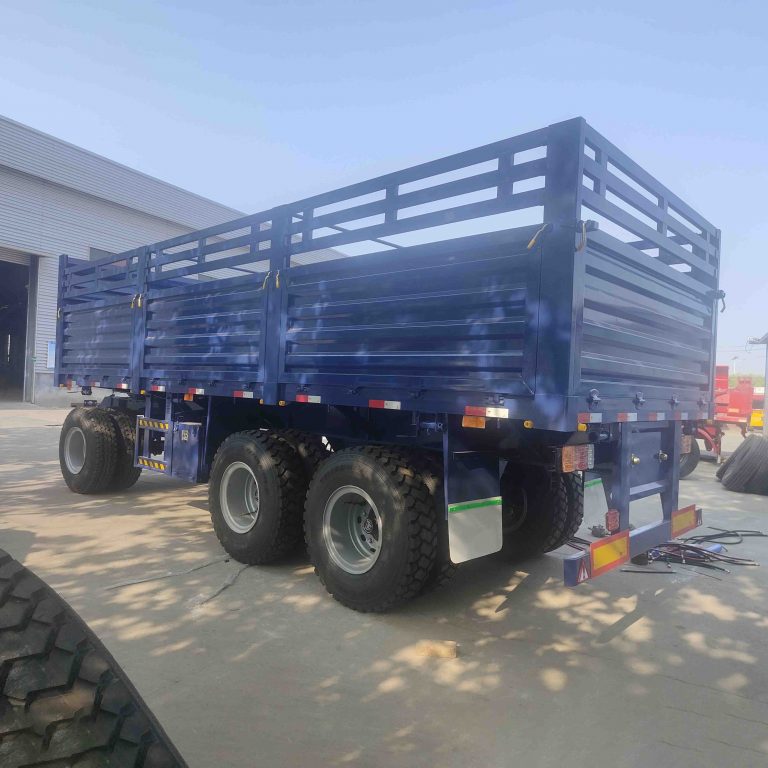

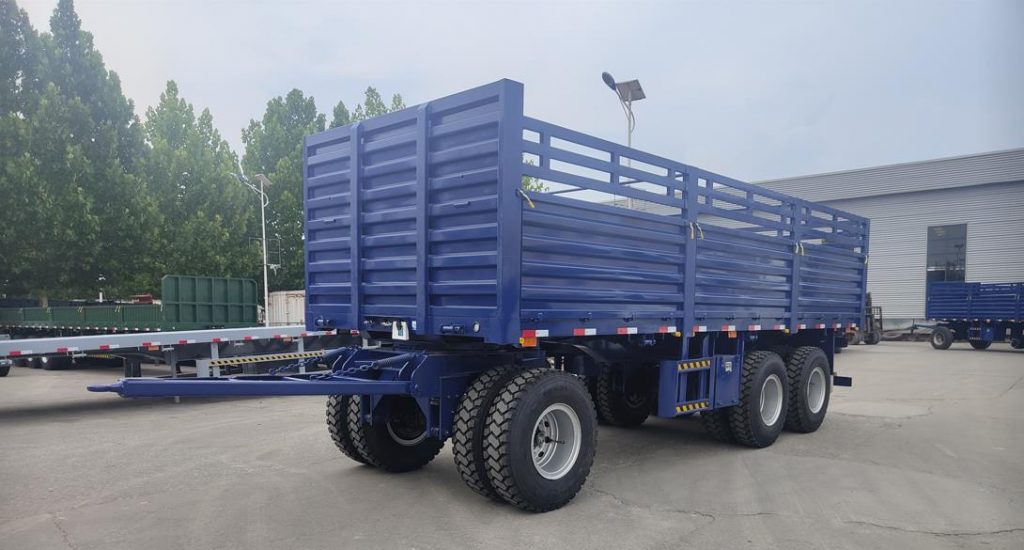

LUCKIN Tri Axles Dolly Fence Cargo Trailer can increase the loading capacity of lorry and reduce fuel consumption, thereby reducing transportation costs for our customers all over the world. Especially, LUCKIN fence cargo dolly trailers are becoming more and more popular in Ethiopia market because we have promoted a lot based on the road conditions and usage habit of our customers there.

Fence cargo full trailer is much flexible when running on the road and easy to turn the direction with double bead turntable on the front of LUCKIN side wall cargo drawbar trailer.LUCKIN  Fence Drawbar Dolly Full Trailer has two axles on the rear and one axle in the front which could provide stability when carrying goods. The trailer can be loaded from either the front or rear end, depending on the size of the load. The tongue on this trailer can be adjusted to compensate for different load heights and weights. The key differences between a semitrailer and a drawbar trailer are that a semitrailer does not have wheels at the front, it has a kingpin which fits inside a fifth-wheel or turntable coupling, and the front of the trailer is supported on the rear wheels of the prime mover.
