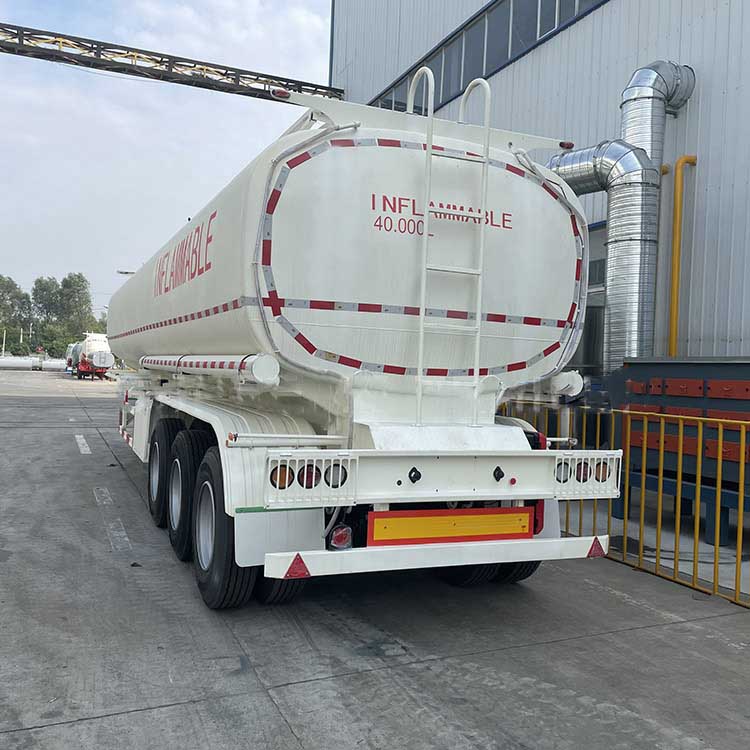

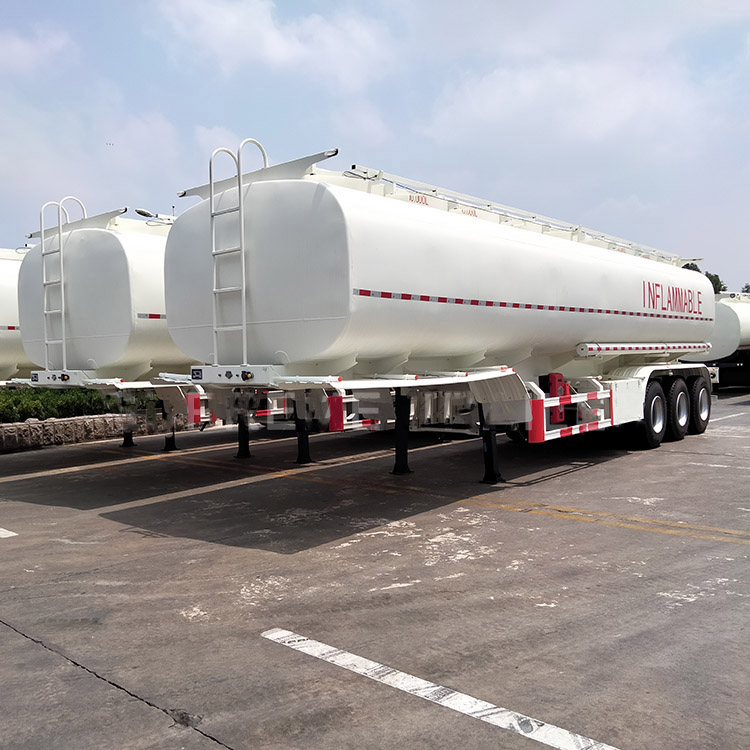

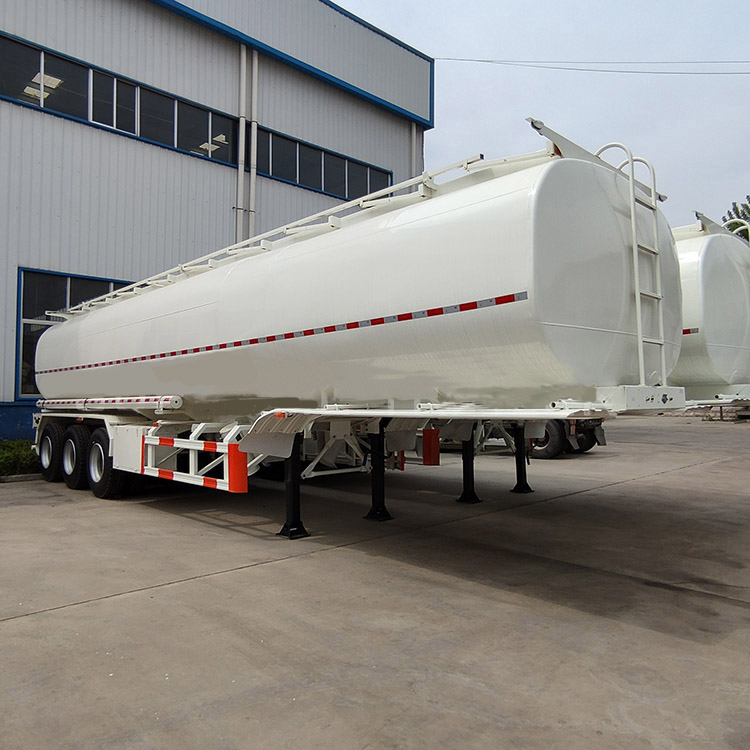

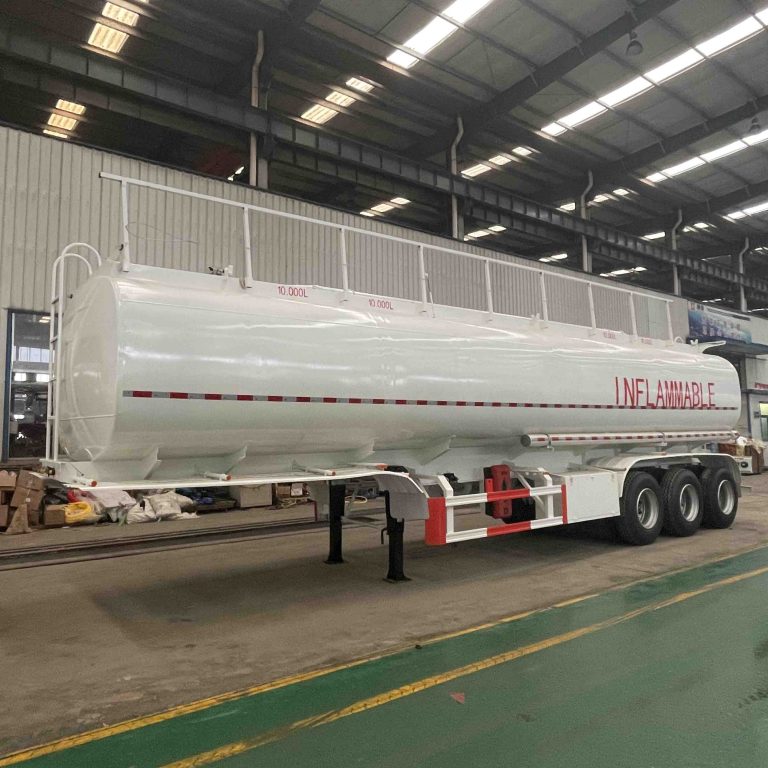

LUCKIN VEHICLE supply 3 Axles 40000L 4 Compartments Fuel Tanker Trailer for Sale in Guinea, which is normally used to transport fuel, gasoline, diesel, crude oil, palm oil, water, liquid chemicals, edible oil, etc. And you can customize fuel tank trailers as you want, such as sizes, shape, materials, axle numbers and so on.
Lead Time：20 days
Shipping Port：Any Port Of China
Payment：T/T;L/C
Specification:
Shape：Double D or Round shape
Dimension：12300mm×2500mm×3800mm (The exact size depends on the final design and requirements from customers.)
Total Volume ( m3 )：40 m³
Compartments：4 10,000L-10,000L-10,000L-10,000L
Tanker Body Material：5 mm thickness，Q345
End Plate: 6 mm thickness，Q345
Wave board: 5 mm thickness，Q345
Manhole Cover: 4pcs, 500mm(diameter), Europe type Aluminum alloy material
Bottom Valve: 4pcs, 4 inches Europe type subsea valve
Discharging Valve: 4pcs, 2.5 inches Europe type outlet
Discharging Pipe: 2.5″ rubber hose, 2 pcs , 6m/each unit
Pump System: Optional
Walkway: Anti-skid walkway on top of the tank, with foldable handrail on both sides of the manhole covers.
Ladder: Anti-skid access ladder fitted at front/back head of the tank.
Main Beams: Welded design，Q345
Axle: 3 axles, 13 tons
Landing Gear: JOST E100, double speed type
King Pin: JOST 2.0 or 3.5 inches bolt-in king pin
Suspension: Mechanical suspensions
Pneumatic Braking System: WABCO RE 6 relay valve; Spring brake chamber (TKL brand ); one piece of 45L air tank
Rim: 9.0-22.5, 13pcs
Tire: Triangle brand 12R22.5，13pcs
ABS: Optional

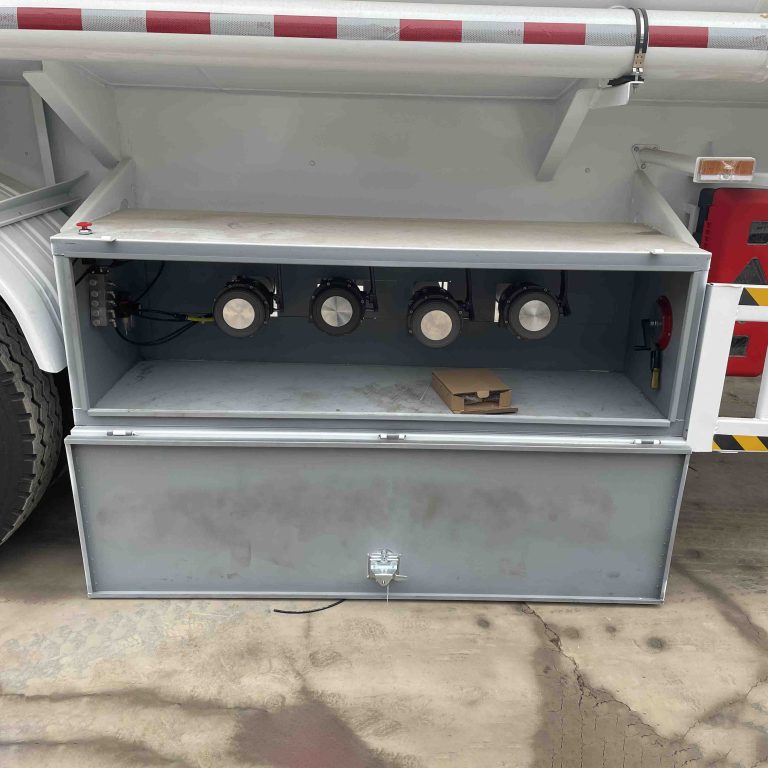

Accessories: One standard tool box, one spare tire carrier
Shipping Terms: By bulk vessel
Product Introduction
With more than 15 years’ experiences of production and exporting, LUCKIN FUEL TANKER TRAILERS have helped a lot of customers to promote their business. LUCKIN VEHICLE offers carbon steel, stainless steel or aluminum material tanker trailers. The volume of the 3 Axle Oil Tanker Trailers can be customized, such as 40,000 liters, 45,000 liters, 54,000 liters, up to 90,000 liters. Also with different compartments, like two, three, four, or more compartments, you can load different liquids as you want separately.
LUCKIN 45000L 3 Compartments Fuel Tanker Semi Trailers adopt advanced design concept and production Process to fabric the most durable tank trailers especially for African Market considering the road condition and customer’s special requirements. And its distortion resistance, earthquake resistance and bump are very helpful for your transport safety.
LUCKIN VEHICLE promises that “Good is not enough when better is available.”We sincerely look forward to your visiting and calling.
