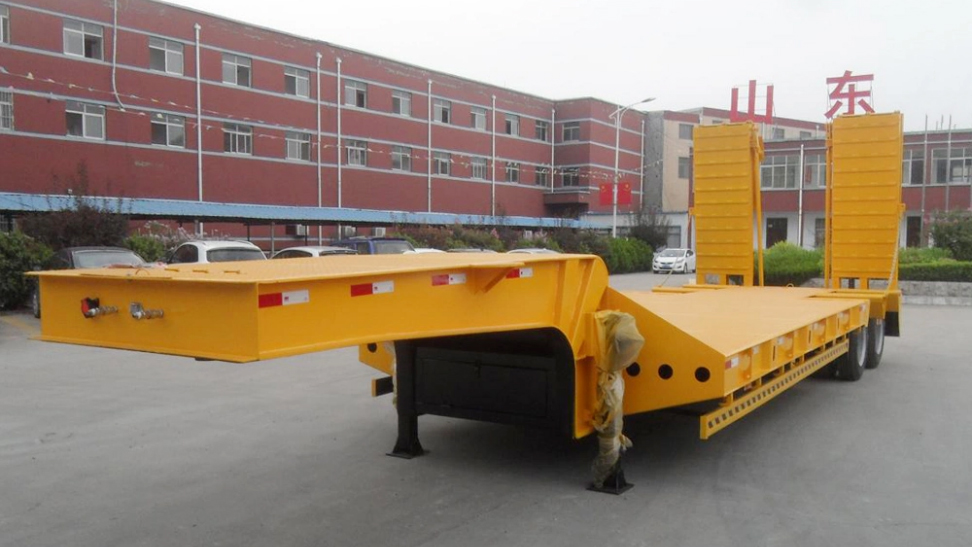

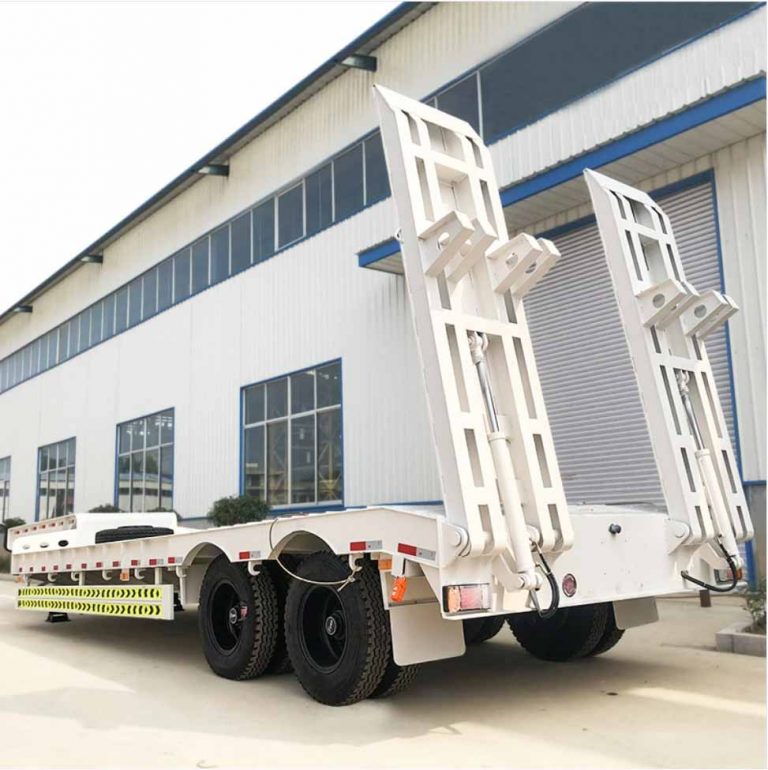

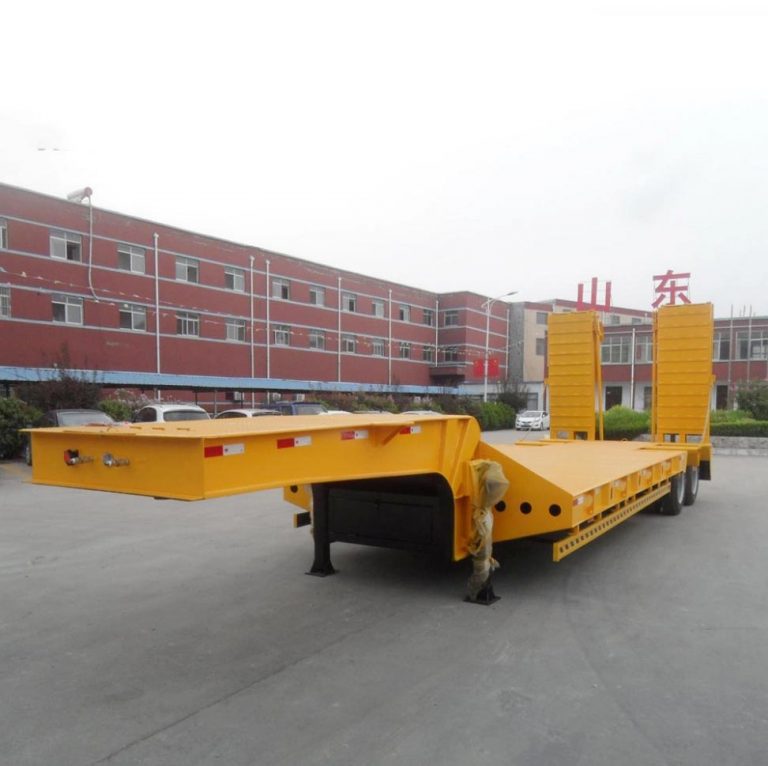

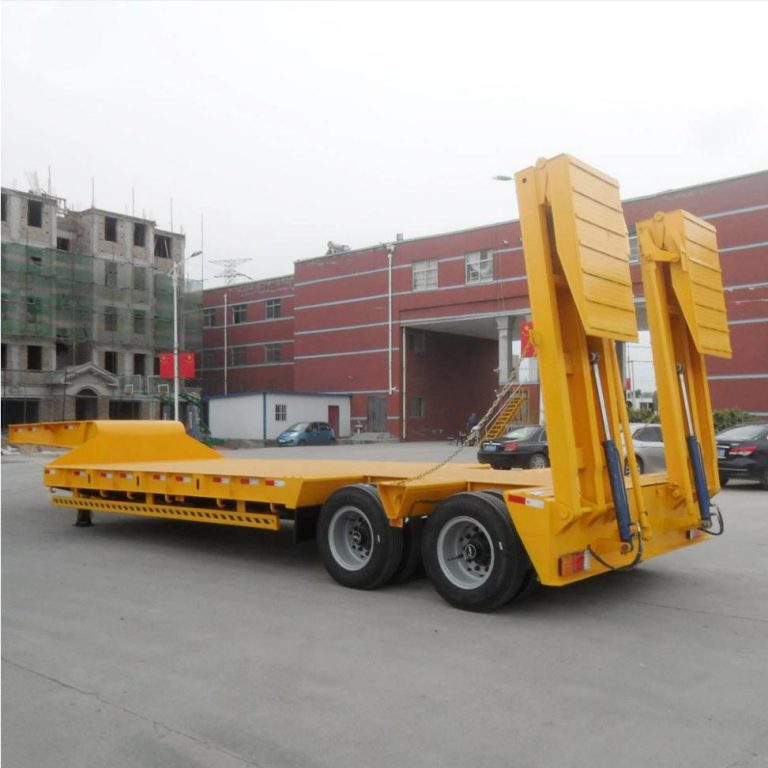

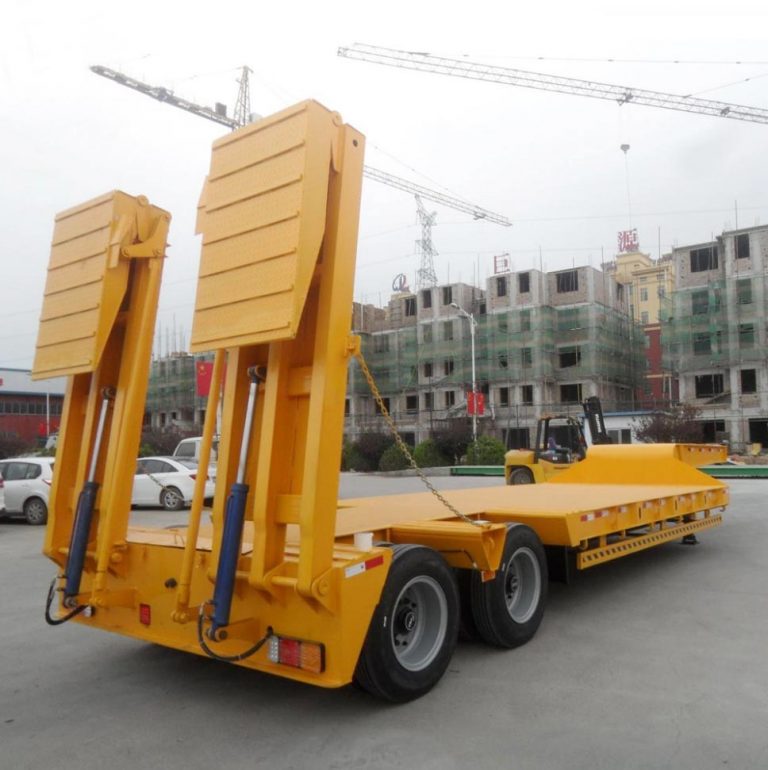

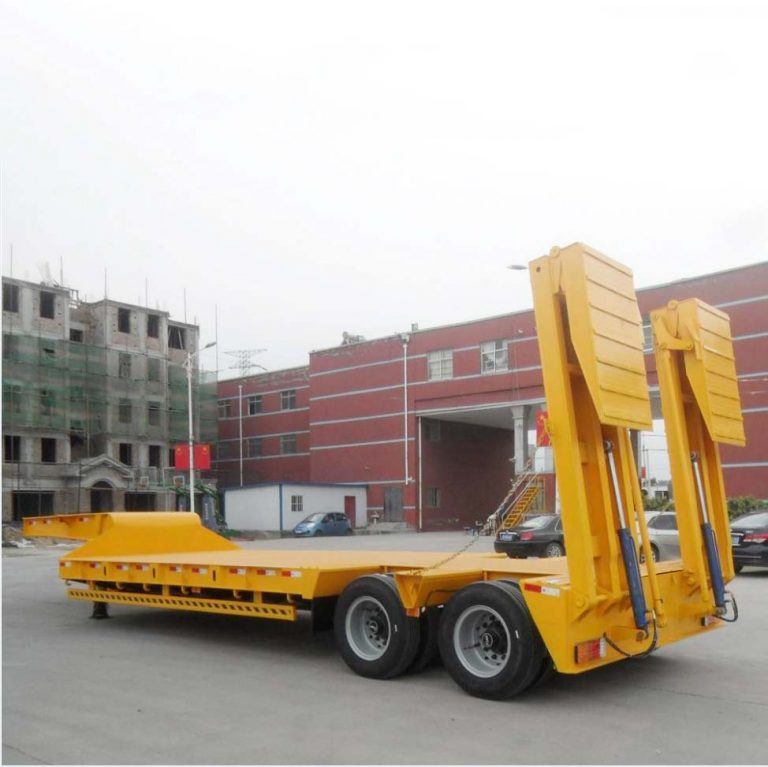

2 Axle 40t Low-Bed Trailer with Automatic Ramp

Product Parameters

Dimension(L*W*H): 14000*3000*1700 (mm) (Customized Sizes or Designed according to your needs)

Payload (Kg): 40000 to 100000

Bottom Platform: 4/5/6mm thick checkered plate

Ladder: Enhanced mechanical ladders

Kingpin: JOST brand 2.0 or 3.5inches (bolted or welded type)

Landing gear: JOST brand 19”

Tires: 11R22.5 /12R22.5/11.00R20/12.00R20

Axle: FUWA/BPW/ZY or other Brands

Suspension: Heavy duty mechanical suspension with springs/Rigid suspension

Brake system: Dual line with WABCO brand Re-6 emergency relay valve, T30/30 air chamber, 45L air tanks

Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Product Introduction

LUCKIN VEHICLE 2 Axles 40T Lowbed Semi Trailer are commonly used to carry heavy duty construction machines and special vehicles, such as excavators, bulldozers, loaders, pavers, cranes, mining machinery, forestry machinery, ect.

With its low height loading surface and heavy capacity, LUCKIN lowbed semi trailer can help you on various of difficult transport solutions. Especially, we adopt high strength steels and optimal designs plans based on years of accumulated experience and force analysis to satisfy the high concentrated force, anti-bump and distortion resistance during its different loading situations.

LUCKIN Lowbed Semi Trailer is getting more and more popular in the market because of its durable quality and good reputations. And we have exported more than 1000 units various styles of lowboy semi-trailers all over the world.

Main beam adopts HG high strength steelsand submerged arc welding technology, which ensure the smooth, sturdy welding seams and avoid welding-opening problems, and also improve the loading capacity.
