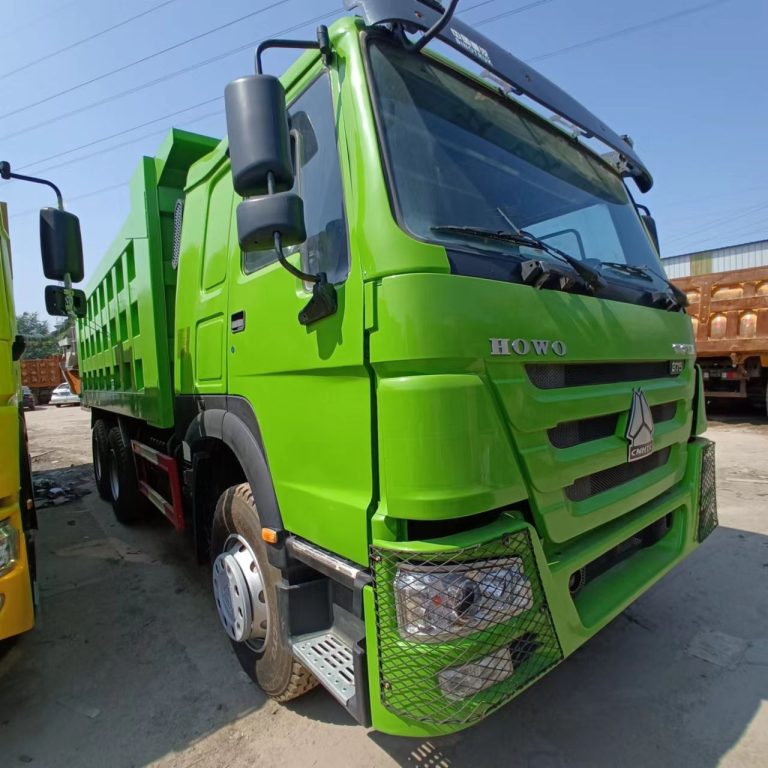

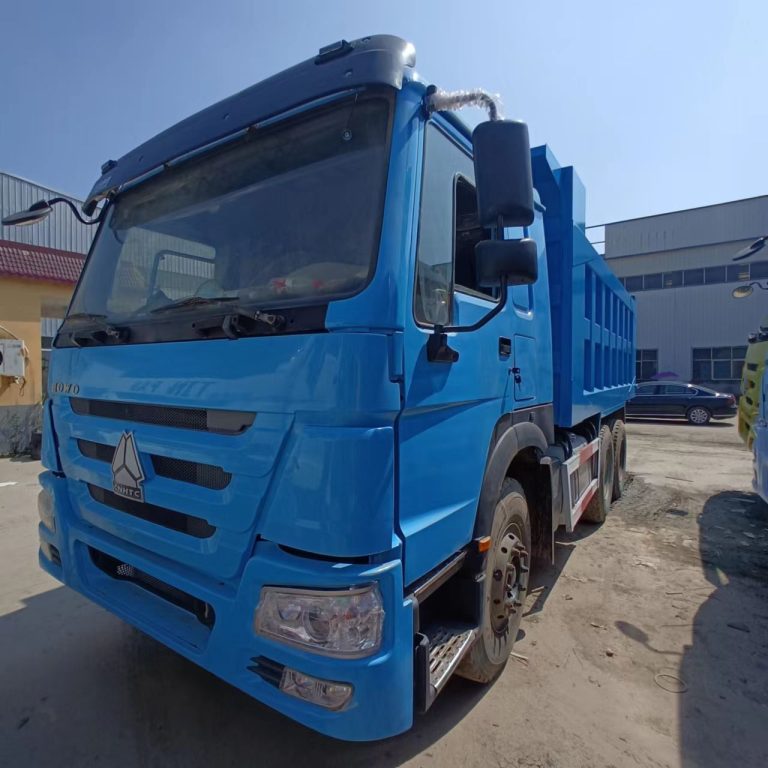

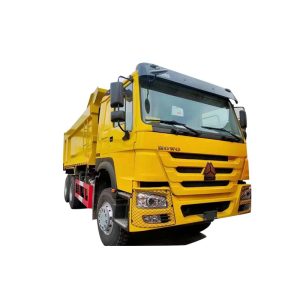

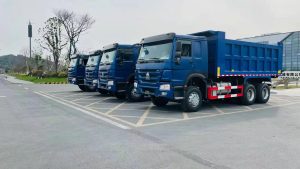

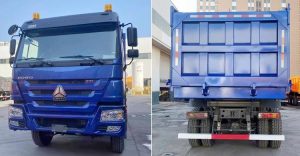

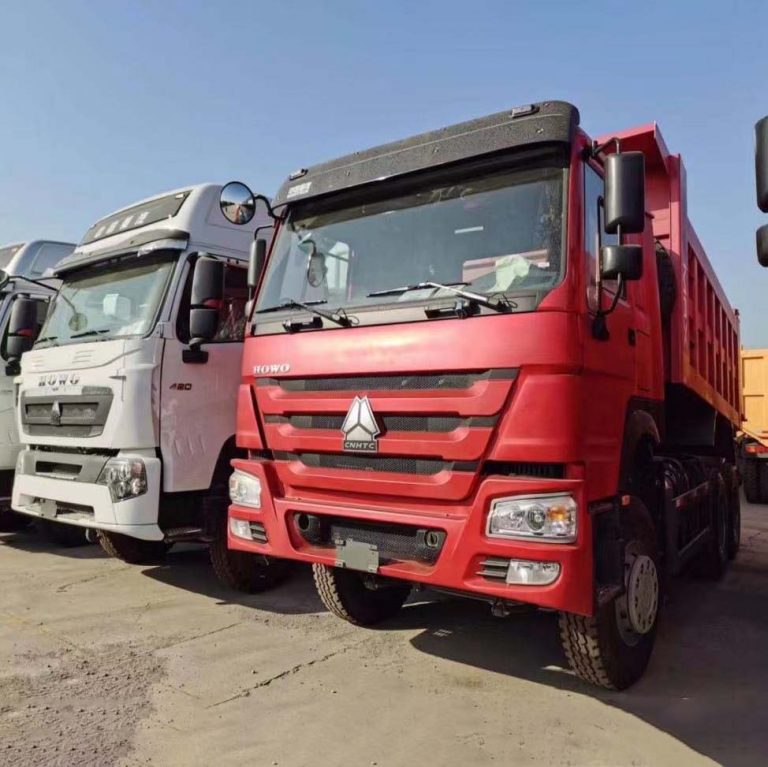

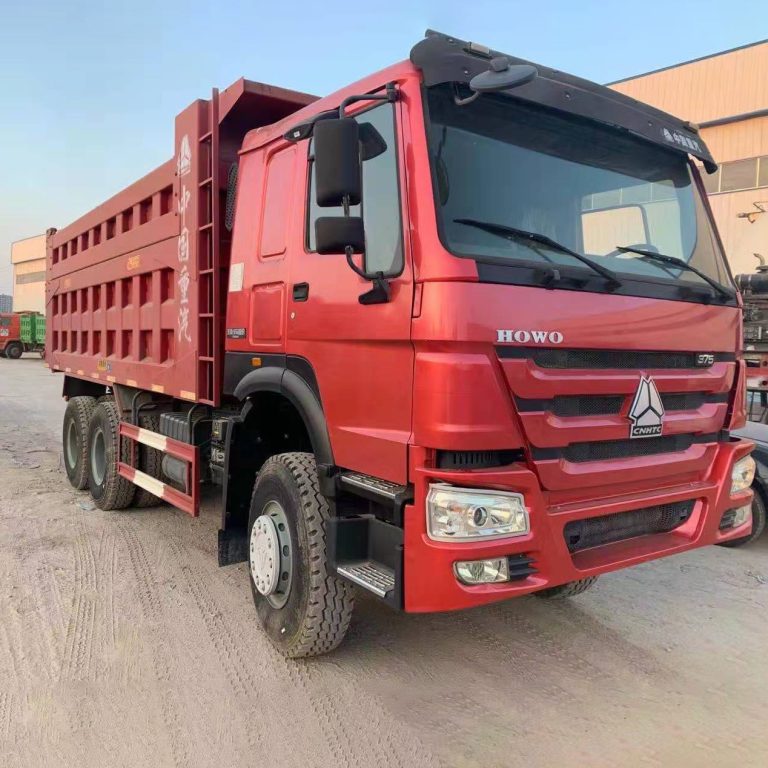

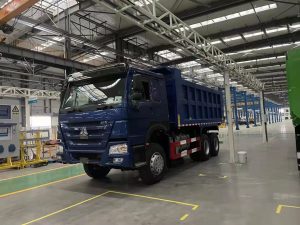

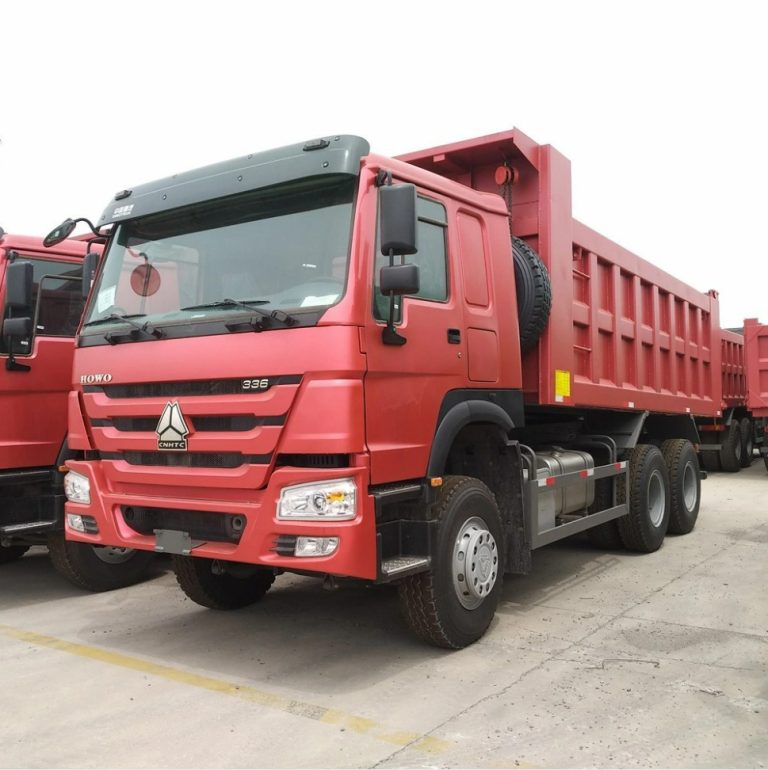

10 Wheels HOWO 6X4 371HP DUMP TRUCK for Sale is mainly used for transporting the stuff in bulk which can be scattered (such as sand, soil, minerals, etc.), mainly in mining, construction sites and so on. 10 Wheels HOWO 6X4 371HP DUMP TRUCK for Sale with 25-30 tons capacity can meet your needs of heavy loading and complicated road conditions.
Product Parameter (Specification)
| Model | Chassis model: ZZ3257N3647 | |
| Engine | WD615.47(371Hp at 2200r/min, Euro II)1500Nm at 1100-1600r/min | |
| Clutch | Single-plate dry diaphragm spring clutch, diameter 430 mm, hydraulically operating with air assistance | |
| Transmission | HW19710, 10 forward and 2 reverse, manual | |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle | HF9 (9000Kg) | |
| Rear Axles | HC16 (2x16000Kg) Ratio: 5.73 | |
| Chassis | Enhanced version of multiple-leaf spring (Front 10 pieces, Rear 12 pieces) | |
| Fuel tank | With one 300 L fuel tank with locking fuel cap | |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance
Ratio: 22.2-26.2 |
|
| Brakes | Service brake: dual circuit compressed air brake
Parking Brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Without ABS (Optional) |
|
| Wheel & Tires | Rims width: 8.5
Tires: 12.00R20 |
|
| Cab | HW76 cab, one sleeper, all steel forward control, 55°hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, exterior sun visor, stereo radio, safety belts, air horn, air conditioner, and single berths with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner, adjustable roof flap.
With air conditioner (optional) |
|
| Electrics | Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW
Alternator: 3-phrase, 28V, 2240W; Batteries: 2×12, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp |
|
| Cargo Body | 5600x2300x1500mm, Front lifting, bottom 8mm, side 6mm | |
| Dimensions in mm | Wheel base
Front wheel track Rear wheel track Front overhang Rear overhang Approach angle(o) Departure angle(o) Overall Dimension |
3625+1350
2022 1830 1500 1670 19 26 8165×2496×3280(mm) |
| Weight in kg | Net weight
Maximum load mass Front axle loading capacity Rear axle loading capacity |
14000
30000 9000 16000×2 |
| Performance | Maximum driving speed(km/h)
Maximum grade ablility (%) Minimum ground clearance(mm) Minimum turning circle(m) |
78
35 290 15 |
Product Introduction
10 Wheels HOWO 6X4 371HP DUMP TRUCK for Sale is mainly used for transporting the stuff in bulk which can be scattered (such as sand, soil, minerals, etc.), mainly in mining, construction sites and so on. 10 Wheels HOWO 6X4 371HP DUMP TRUCK for Sale with 25-30 tons capacity can meet your needs of heavy loading and complicated road conditions. All kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight, high rigidity, high loading capacity.
Product Details
LUCKIN VEHICLE promises that “Good is not enough when better is available.”We sincerely look forward to your visiting and calling.
