Lowbed semi-trailer is a special type of trailer designed for transporting heavy or large goods. It usually has a low body and large carrying capacity, which is very suitable for transporting overweight and ultra-high cargo such as large machinery and equipment, building materials, and construction machinery. Here are some of the main benefits and features of low plate semi-trailers:
(1)Strong carrying capacity: Low plate semi-trailer design has a very high carrying capacity, able to transport heavy goods, such as construction equipment, large machinery, etc. The material of the car body is strong and durable, ensuring safety and stability during transportation.
(2)Low center of gravity design: Low plate semi-trailers have a lower body height than traditional trailers. This design makes the weight more stable during transportation and reduces the risk of rollouts caused by a high center of gravity.
(3)Strong adaptability: low flat semi-trailer can adapt to different sizes and shapes of goods, the compartment area is large, can easily accommodate large goods. Even ultra-long, ultra-wide and ultra-high items can be transported by adjusting the configuration of the carriage.
(4)High transportation efficiency: low flat semi-trailer generally has a longer carriage and a lower height, which is suitable for long-distance transportation of bulk goods, which can improve transportation efficiency and reduce transportation costs.
(5)Good safety: Due to the design of low plate semi-trailer with high stability, the body is less prone to shaking or rollover during transportation. At the same time, many low-plate semi-trailers are equipped with advanced braking systems and safety equipment, which improves the safety of transportation.

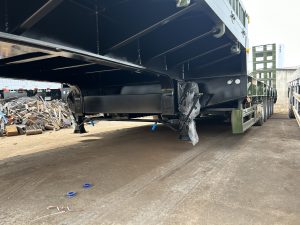

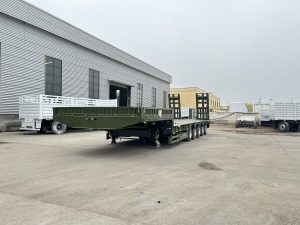

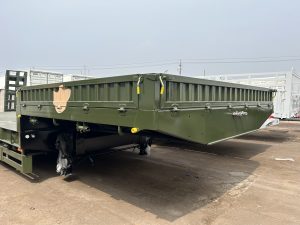

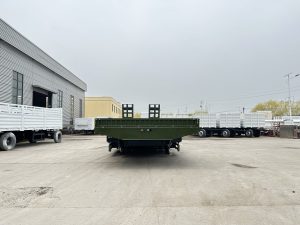

As a professional semi-trailer factory, LuckinVehicle factory received a special order, the whole vehicle army green, 3-axis low flat semi-trailer, the whole vehicle with BPW axle,JOST Landing gear,With Mechanical ladder, 5mm thickness pattern plate,Which can max load 120T,make sure the customer’s requirements.
LUCKIN VEHICLE supply Hot Selling Axles Lowbed Semi Trailer Near You,which is commonly used to carry heavy duty construction machines and special vehicles, such as excavators, bulldozers, loaders, pavers, cranes, mining machinery, forestry machinery, ect. We are professional and excellent manufacturer and supplier of all kinds of trailers and trucks in China.
With its low height loading surface and heavy capacity, LUCKIN VEHICLE lowbed semi trailer can help you on various of difficult transport solutions. Especially, we adopt high strength steels and optimal designs plans based on years of accumulated experience and force analysis to satisfy the high concentrated force, anti-bump and distortion resistance during its different loading situations.
China Lowbed Semi Trailer for sale is getting more and more popular in the market because of its durable quality and good reputations. And we have exported more than 1000 units various styles of lowboy semi-trailers all over the world.
erms | Low bed semi trailer | Low bed semi trailer |
Loading Capacity | 40-60 tons | 60-80 tons |
Axle | 3 pieces, 13T FUWA/BPW axle | 4 pieces, 13T FUWA/BPW axle |
Tyre | 12 pieces, 10.00R20 | 16 pieces, 11.00R20 |
Dimensions(LxWxH) | 13000 -17000mm x 3000 x 1750mm | |
Tare weight | 10 tons to 12 tons | |
Axle spacing | 1310mm | |
Rims | 8.5-20, 9.0-20 | |
Suspension System | Leaf spring suspension / air suspension | |
Brake System | Dual line pneumatic brake system with WABCO emergency relay valve | |
Main Beam | Height 500mm Q345 carbon steel | |

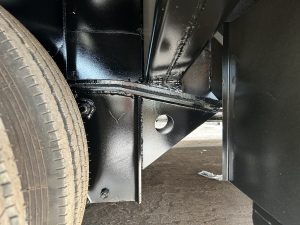

Chassis | upper 20mm, lower 20mm. Mid web 12mm | |

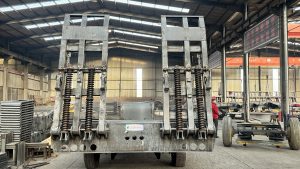

Rear Loading Ramps | 2 nos, 720 mm width, spring loaded & manually operated with safety chain | |
Kingpin | 2′ or 3.5′ interchangeable,JOST brand | |
Landing Gear | 28 Tons , Two speed manual operation | |
Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard | |
Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
Painting | Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available | |
Tool Box | One tool box with a set of standard trailer tools | |
Spare Tyre Carrier | One piece or two pieces |
LUCKIN VEHICLE Brand Lowbed Trailer: the body of the lowbed semi-trailer is lower than that of the general trailer, reducing the center of gravity of the vehicle, making the transportation of large items more stable, suitable for high center of gravity cargo transportation.
Adjustable compartment: Many lowbed semi-trailers are equipped with adjustable compartment sections that can be adjusted according to the needs of different cargo and flexibly respond to different transportation needs.
Rugged: The frame and chassis of lowbed semi-trailers are usually made of high-strength steel with extremely high compressive resistance and wear resistance, suitable for long-term use under heavy load conditions.
Equipped with dragging device: In order to ensure the safe transportation of bulk goods, low plate semi-trailers are generally equipped with strong dragging devices, such as chains, buckle and other devices, to ensure that the goods are firmly fixed in the carriage.
Diverse size options: Lowbed semi-trailers are available in different lengths and widths to meet the needs of different types of goods. At the same time, some models also offer retractable compartments to accommodate larger cargo sizes.
Transportation of large equipment: Due to the structural design of lowbed semi-trailer, it is especially suitable for transporting large engineering equipment, excavators, cranes, etc. These vehicles are able to meet complex transportation needs and ensure the safety of goods during transportation.

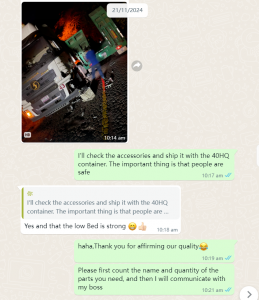

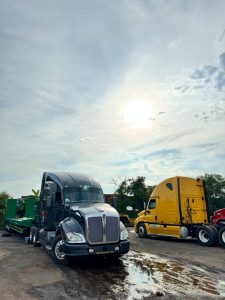

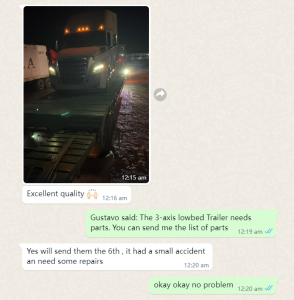

Customer feedback:
After Sale:
Luckin Vehicle Brand Lowbed Trailer with its excellent bearing capacity, stability and adaptability, low plate semi-trailer is widely used in construction, mining, mechanical equipment transportation and other fields. Whether it is short or long distance transportation, it can efficiently and safely complete the transportation of heavy goods.
If you are interested in this trailer, please feel free to contact us.
Whatsapp:+86 18006482608
Sale Manager:Amy Fan
Email:amy@luckinvehicle.com
